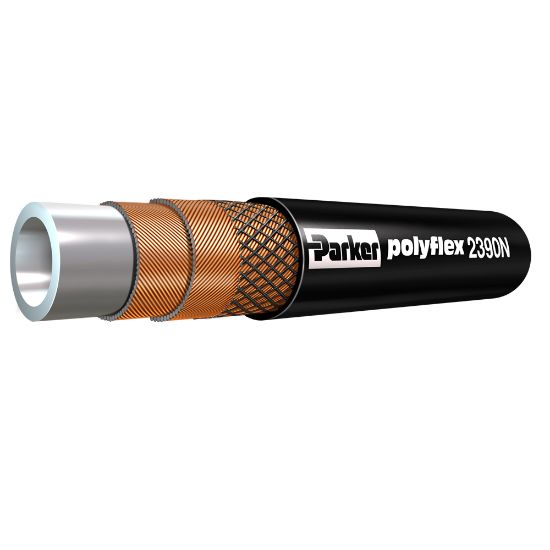

Parker 2390N-04V10 - High Pressure Hydraulic Hose - 2390N

Parker high pressure 2390N hydraulic oil and gas hose features low dimensional change under pressure resulting in excellent response times.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2390N-04V10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Division	Parflex Division
Size	-4	Inside Diameter	1/4 inch
Design Factor	4:1	Minimum Bend Radius	2-3/4 inch
Hose Inner Tube Material	Polyamide (PA)	Weight	0.17 lb/ft
Application	Oil & Gas	Media	Petroleum Hydraulic Fluids
Maximum Operating Temperature	55 °C	Outside Diameter	0.520 inch
Hose Reinforcement Material	2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire	Cover Material	Polyurethane Sea Water Resistant
Compatible Fitting	E3 Series	Specifications Met	ISO 13628-5
Maximum Operating Pressure	49 MPa	Hose I.D. (size)	-4
Cover Color	Black	Maximum Operating Pressure	7,000 psi
