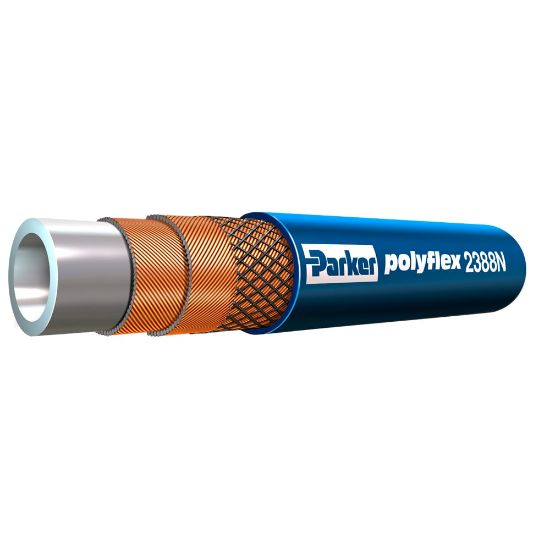

Parker 2388N-08V12 - High Pressure Hydraulic Hose - 2380N/2388N

Parker 2380N and 2388N high pressure hydraulic hoses feature low volumetric expansion and are available as a twinline hose. Ideal for oil and gas applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2388N-08V12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	212 °F
Size	-8	Cover Material	Polyurethane
Minimum Bend Radius	4-3/4 inch	Inside Diameter	12.7 mm
Media	Petroleum Hydraulic Fluids	Design Factor	2.5:1
Specifications Met	DIN 1829-2	Application	Oil & Gas Hydraulic Systems
Hose Inner Tube Material	Polyamide 12	Hose Reinforcement Material	2 Spirals and 2 Open Spirals of High Tensile Steel Wire
Weight	0.54 lb/ft	Outside Diameter	0.910 inch
Compatible Fitting	BS Series	Maximum Operating Pressure	110 MPa
Hose I.D. (inch)	1/2	Cover Color	Blue
Maximum Working Pressure (psi)	15,950
