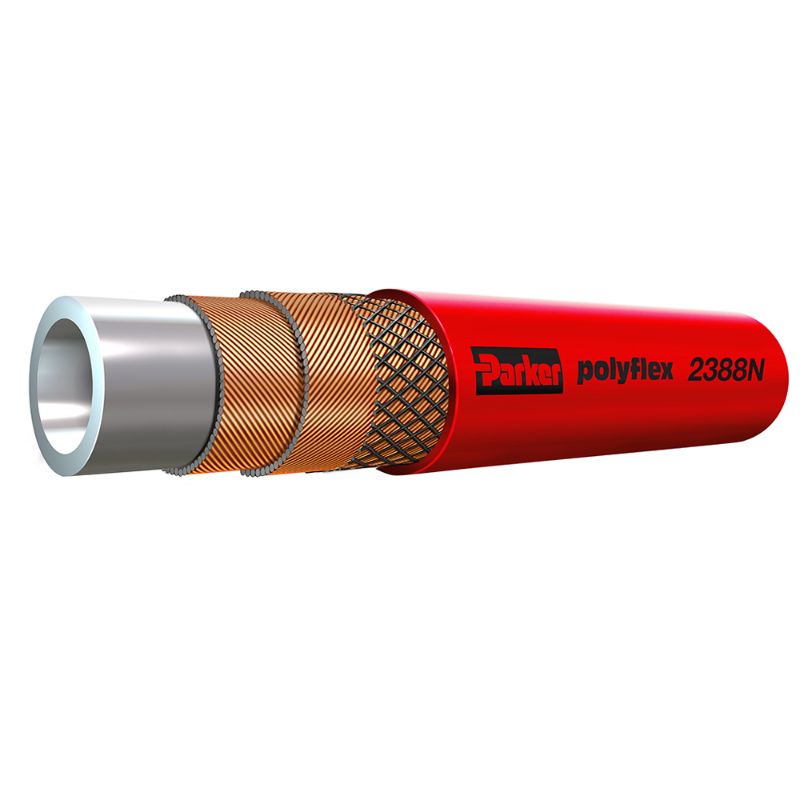

Picture of Parker 2388N-04V14 - Water Blast Hose - 2380N/2388N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2388N-04V14 - Water Blast Hose - 2380N/2388N

Parker 2380N/2388N high pressure waterblast hoses operate up to 18,000 psi (1200 bar) and are ideal for dirt and paint removal.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 2388N-04V14
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Minimum Operating Temperature-40 °FDivisionParflex Division
Size-4MediaWater
Minimum Bend Radius1-1/2 inchCover MaterialPolyurethane
Hose Inner Tube MaterialPolyamide (PA)ApplicationHigh Pressure Hydraulics
Inside Diameter6.4 mmDesign Factor2.5:1
Weight0.24 lb/ftSpecifications MetDIN 1829-2
Maximum Operating Temperature158 °FOutside Diameter13.4 mm
Hose Reinforcement Material2 Spirals and 2 Open Spirals of High Tensile Steel WireCompatible FittingBS Series
Maximum Operating Pressure1280 barHose I.D. (inch)1/4
Cover ColorRed
