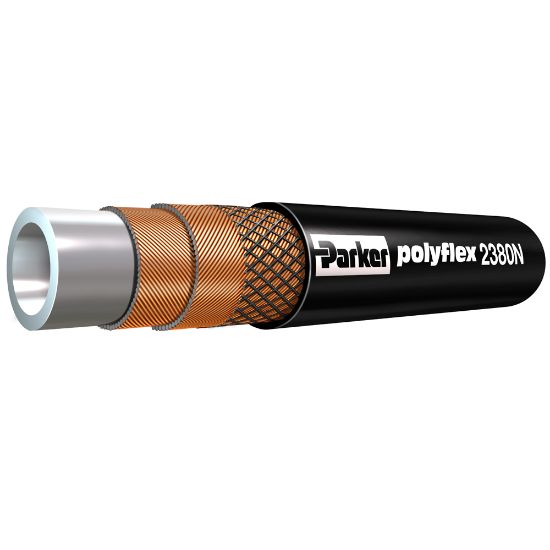

Parker 2380N-20V30-PFD - High Pressure Hydraulic Hose - 2380N/2388N

Parker 2380N and 2388N high pressure hydraulic hoses feature low volumetric expansion and are available as a twinline hose. Ideal for oil and gas applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2380N-20V30-PFD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Design Factor	4:1	Size	-20
Division	Parflex Division	Media	Petroleum Hydraulic Fluids
Weight	1.23	Compatible Fitting	NX Series
Minimum Operating Temperature	-40	Maximum Operating Temperature	212
Hose Reinforcement Material	2 Spirals and 2 Open Spirals of High Tensile Steel Wire	Inside Diameter	1-1/4
Cover Material	Polyamide (PA)	Hose Inner Tube Material	Polyamide 12
Minimum Bend Radius	15-3/4	Application	Portable Equipment
Maximum Operating Pressure	3990	Outside Diameter	1.730
Specifications Met	N/A	Product Type	Hydraulic Hose
Cover Color	Black	Hose I.D. (inch)	1-1/4
Maximum Working Pressure (psi)	3,990
