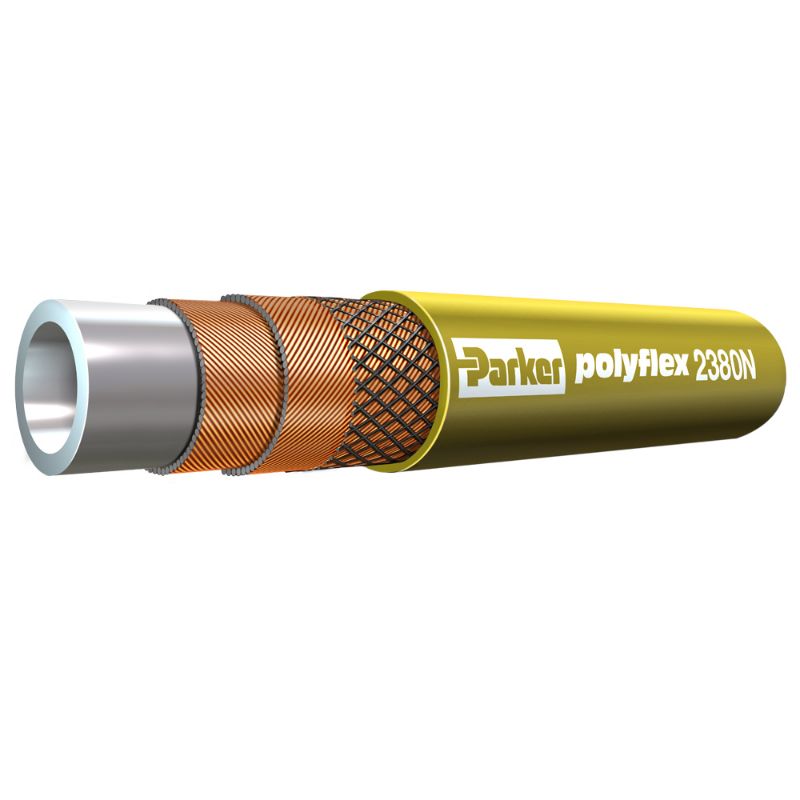

Picture of Parker 2380N-05V06W - Water Blast Hose - 2380N/2388N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2380N-05V06W - Water Blast Hose - 2380N/2388N

Parker 2380N/2388N high pressure waterblast hoses operate up to 18,000 psi (1200 bar) and are ideal for dirt and paint removal.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 2380N-05V06W
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Minimum Operating Temperature-40DivisionParflex Division
MediaChemicalsCover MaterialPolyurethane
Hose Inner Tube MaterialPolyamide (PA)Minimum Bend Radius3-1/2
ApplicationHigh Pressure HydraulicsInside Diameter5/16
Design Factor2.5:1Specifications MetDIN 1829-2
Maximum Operating Temperature158Size-5
Compatible FittingKY SeriesHose Reinforcement Material2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire
Weight0.24Outside Diameter0.620
Maximum Operating Pressure14500Hose I.D. (inch)5/16
Cover ColorYellow
