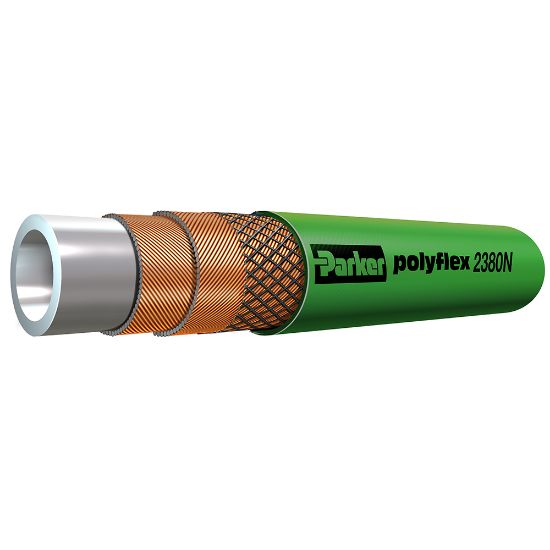

Picture of Parker 2380N-05V03W - Water Blast Hose - 2380N/2388N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2380N-05V03W - Water Blast Hose - 2380N/2388N

Parker 2380N/2388N high pressure waterblast hoses operate up to 18,000 psi (1200 bar) and are ideal for dirt and paint removal.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 2380N-05V03W
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Minimum Operating Temperature-40 °FDivisionParflex Division
MediaWaterCover MaterialPolyurethane
Hose Inner Tube MaterialPolyamide (PA)ApplicationHigh Pressure Hydraulics
Inside Diameter7.9 mmMinimum Bend Radius90 mm
Design Factor2.5:1Specifications MetDIN 1829-2
Maximum Operating Temperature158 °FMaximum Operating Pressure100 MPa
Weight0.35 kg/mSize-5
Outside Diameter15.8 mmCompatible FittingKY Series
Hose Reinforcement Material2 Closed Spirals and 2 Open Spirals of High Tensile Steel WireHose I.D. (inch)5/16
Cover ColorGreen
