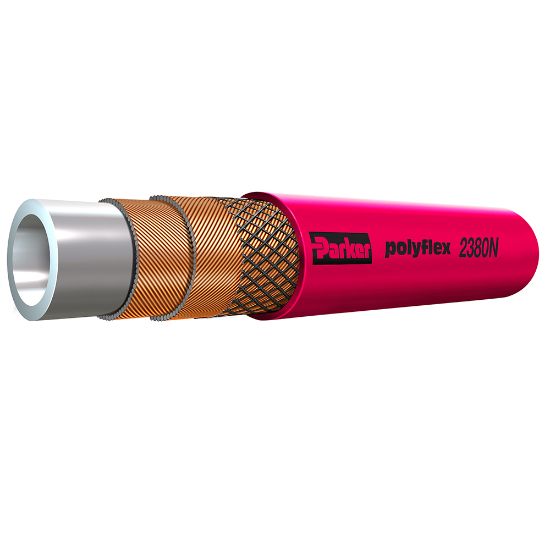

Picture of Parker 2380N-04V04 - High Pressure Hydraulic Hose - 2380N/2388N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2380N-04V04 - High Pressure Hydraulic Hose - 2380N/2388N

Parker 2380N and 2388N high pressure hydraulic hoses feature low volumetric expansion and are available as a twinline hose. Ideal for oil and gas applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 2380N-04V04
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Minimum Operating Temperature-40 °CSize-4
Design Factor4:1Specifications MetN/A
Maximum Operating Temperature100 °CMinimum Bend Radius70 mm
Cover MaterialPolyurethaneWeight0.27 kg/m
Inside Diameter6.4 mmMediaPetroleum Hydraulic Fluids
Maximum Operating Pressure70 MPaApplicationOil & Gas Hydraulic Systems
Outside Diameter13.3 mmCompatible Fitting8X Series
Hose Inner Tube MaterialPolyamide 12Hose Reinforcement Material2 Spirals and 2 Open Spirals of High Tensile Steel Wire
Hose I.D. (inch)1/4Cover ColorRed
Maximum Working Pressure (psi)10,150
