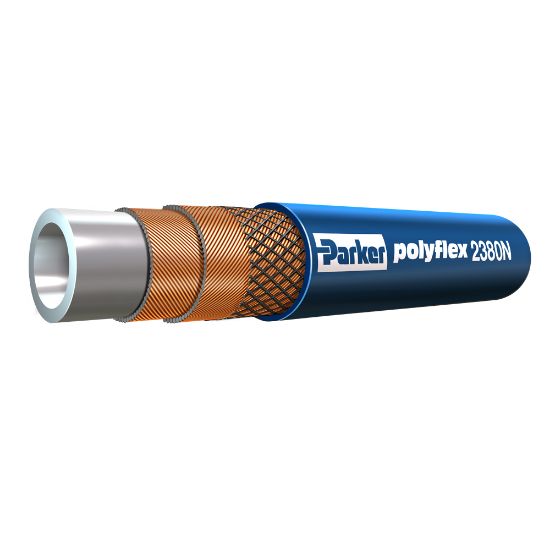

Parker 2380N-04V02 - High Pressure Hydraulic Hose - 2380N/2388N

Parker 2380N and 2388N high pressure hydraulic hoses feature low volumetric expansion and are available as a twinline hose. Ideal for oil and gas applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2380N-04V02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Size	-4
Inside Diameter	1/4 inch	Design Factor	4:1
Maximum Operating Temperature	212 °F	Specifications Met	N/A
Minimum Bend Radius	2-3/4 inch	Cover Material	Polyurethane
Weight	0.27 kg/m	Media	Petroleum Hydraulic Fluids
Maximum Operating Pressure	70 MPa	Application	Portable Equipment
Outside Diameter	0.520 inch	Compatible Fitting	8X Series
Hose Inner Tube Material	Polyamide 12	Hose Reinforcement Material	2 Spirals and 2 Open Spirals of High Tensile Steel Wire
Hose I.D. (inch)	1/4	Cover Color	Blue
Maximum Working Pressure (psi)	10,150
