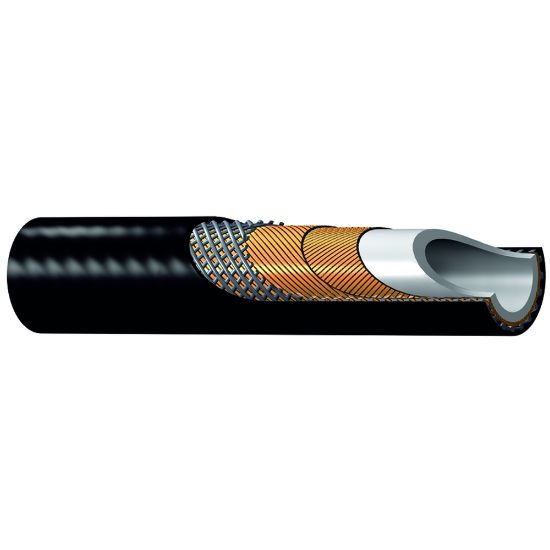

Parker 2380N-025V10 - High Pressure Hydraulic Hose - 2380N/2388N

Parker 2380N and 2388N high pressure hydraulic hoses feature low volumetric expansion and are available as a twinline hose. Ideal for oil and gas applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2380N-025V10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Design Factor	4:1
Weight	0.16 kg/m	Maximum Operating Temperature	212 °F
Specifications Met	N/A	Cover Material	Polyurethane
Media	Petroleum Hydraulic Fluids	Inside Diameter	4 mm
Maximum Operating Pressure	750 bar	Application	Oil & Gas Hydraulic Systems
Size	-2.5	Outside Diameter	9.7 mm
Compatible Fitting	8X Series	Minimum Bend Radius	2-3/16 inch
Hose Inner Tube Material	Polyamide 12	Hose Reinforcement Material	2 Spirals and 2 Open Spirals of High Tensile Steel Wire
Hose I.D. (inch)	5/32	Cover Color	Black
Maximum Working Pressure (psi)	10,875
