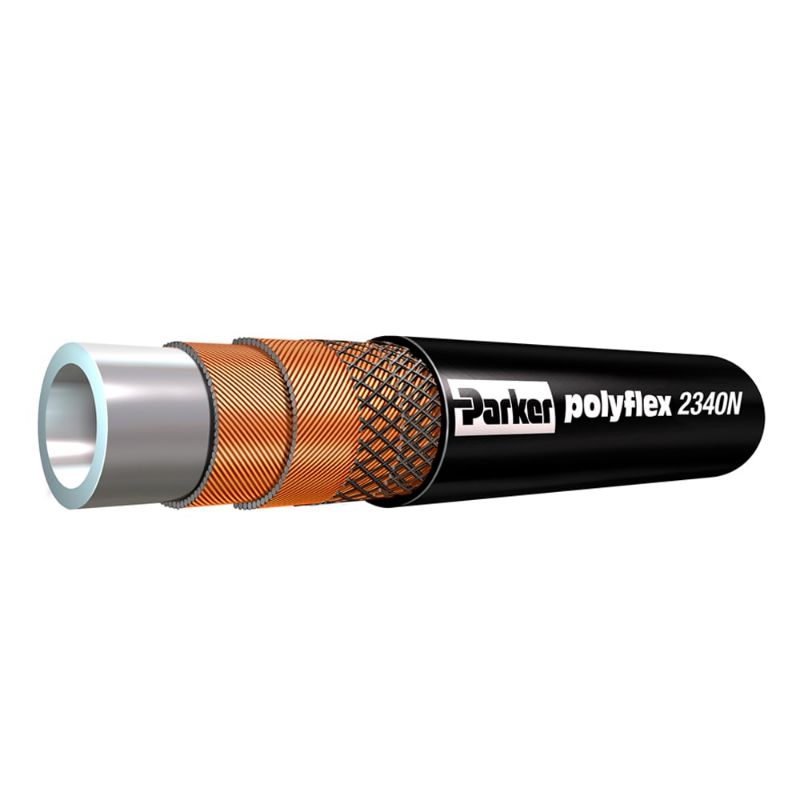

Parker 2340N-24 - High Pressure Hydraulic Hose - 2340N-24

High Pressure alternative to welded piping that requires costly labor & inspection and industrial grades of rubber hydraulic hose that are not designed or certified for subsea service.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2340N-24

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40	Division	Parflex Division
Design Factor	4:1	Maximum Operating Temperature	212
Cover Material	Polyurethane	Hose Inner Tube Material	Polyamide (PA)
Maximum Operating Pressure	5000	Inside Diameter	1-1/2
Size	-24	Application	Oil & Gas
Specifications Met	ABS	Weight	2.51
Media	Chemicals (Methanol) - Check your fluid compatibility with our catalogue chart.	Hose Type	Subsea
Outside Diameter	2.180	Compatible Fitting	8X Series
Minimum Bend Radius	17.7	Hose Reinforcement Material	2 Spirals of High Tensile Steel Wire
Hose I.D. (size)	-24
