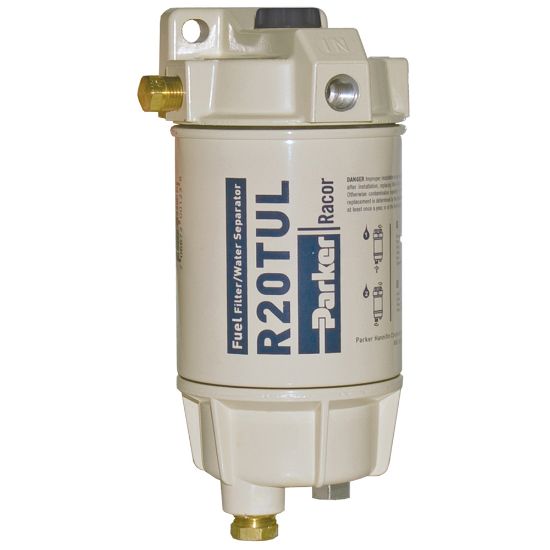

Picture of Parker 230RMAM - Marine Fuel Filter Water Separator – Racor Spin-on Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 230RMAM - Marine Fuel Filter Water Separator – Racor Spin-on Series

Racor Marine Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. UL-approved versions available.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 230RMAM
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionEngine Mobile Original Equipment DivisionBrandRacor
Operating Temperature-40 to 121 °CFilter Element Type10 Micron Aquabloc Spin-on
Head MaterialPower Coated Aluminium AlloyMounting TypeBracket Included
Depth4 inchNumber of Ports1 Inlet / 2 Outlet
Maximum Fluid Temperature88.0 °CMaximum Operating Pressure206.8 kPa
Width3.9 inchHeight22.9 cm
Weight2.0 lb / 0.5 KgCompatible ElementR20S = 2 micron<br/>R20TUL = 10 micron<br/>R20PUL = 30 micron
Clean Pressure Drop2.07 kPaProduct SeriesDiesel Spin-on
Micron Rating98% @ 10 MicronFlow Rate30 gph / 114 lph
Port Size1/4”-18 NPTFBowl MaterialAluminum Bowl
Filtered MediumDieselUL CertificationYes
Integral Primer PumpYes
