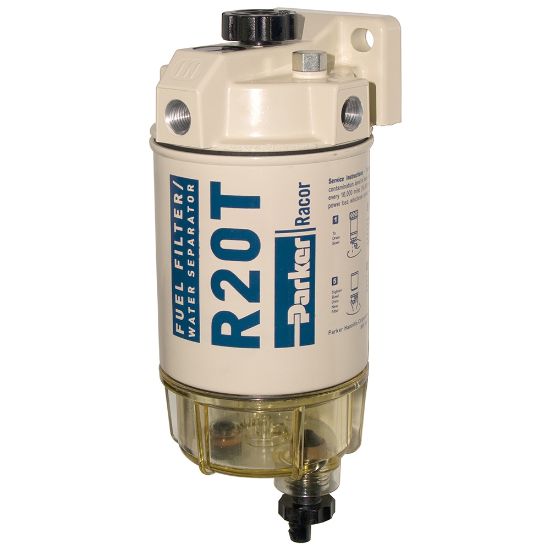

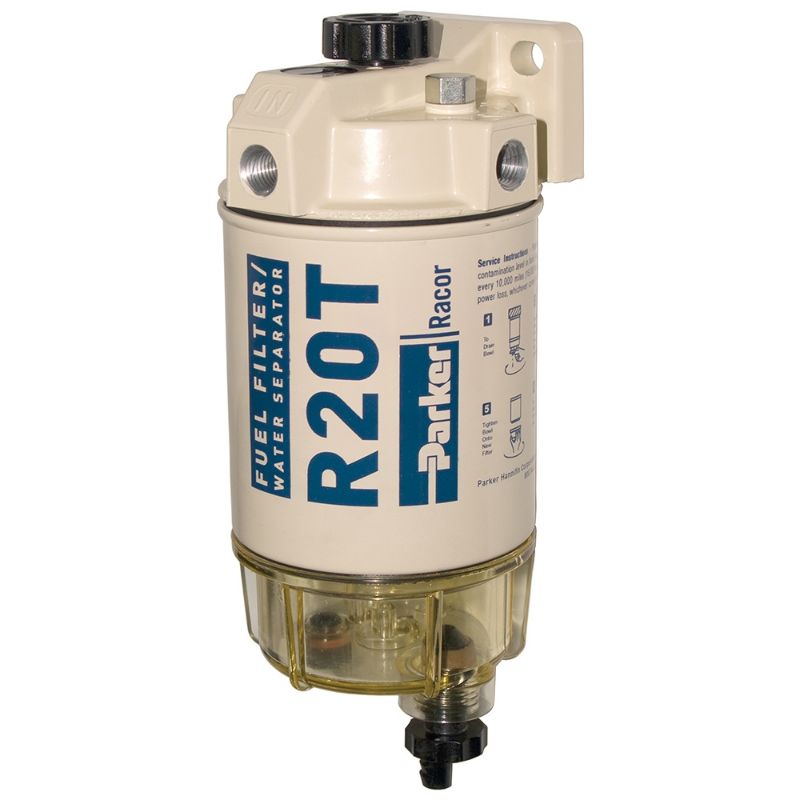

Picture of Parker 230R10 - Fuel Filter Water Separator – Racor Spin-on Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 230R10 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 230R10
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionEngine Mobile Original Equipment DivisionBrandRacor
Operating Temperature-40 to 121 °CProduct TypeDiesel Spin-on FF/WS
Head MaterialAluminium AlloyFor Fluid TypeDiesel and Gasoline
Filter Element Type10 Micron Aquabloc Spin-onAccessories IncludedSee Product Support Tab
Maximum Operating Pressure207.0 kPaDepth4 inch
Width102.0 mmNumber of Ports1 Inlet / 2 Outlet
Maximum Fluid Temperature190.0 °FHeight229.0 mm
Weight2 lb / 0.90 KgCompatible ElementR20S = "2" Micron<br/>R20T = 10 Micron<br/>R20P = 30 Micron
Clean Pressure Drop2.14 kPaLocationNorth America and EMEA regions
Micron Rating98% @ 10 MicronMountingBracket Included
Bowl TypeStandard, Clear Engineering PlasticPart TypeFilter Assembly
Port Size1/4" NPTFBowl MaterialClear Engineering Plastic
Heater Power RatingNo HeaterProduct SeriesDiesel Spin-on 200
Integral Primer Pump IncludedHand Plunger Priming Pump (Diesel or Gasoline)Flow Rate30 gph (114 lph)
