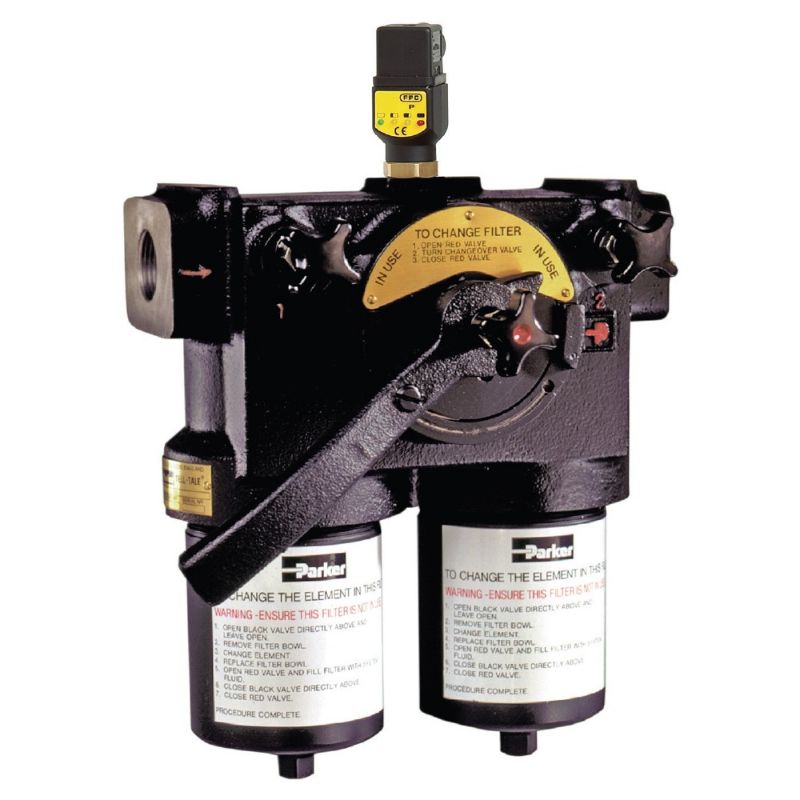

Parker 22PD102QBM3KG161 - High Pressure In-Line Duplex Filter - 22PD-32PD Series

The 22PD-32PD Series High Pressure Duplex Filters are specially designed to offer continuous operation, even during element change.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 22PD102QBM3KG161

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Mounting Type	Inline	Division	Hydraulic & Industrial Process Filtration Division EMEA
Division	Hydraulic & Industrial Process Filtration Division EMEA	Product Type	Hydraulic Filter
Operating Temperature	-40 to 100	Seal Material	Nitrile of Fluoroelastomer
Application	Hydraulic Filtration	Industry	Industrial Manufacturing Equipment<br/>Off-Road Transport
For Fluid Type	Mineral and vegetable oils and some synthetic oils	Product Series	22PD-32PD
Housing Material	Iron/Steel	Maximum Flow Rate	210
Operating Pressure	up to 210	Seal Material	Nitrile
Indicator Type	Visual	Micron Rating	2 µm
Filter Element Type	02Q Microglass	Indicator Pressure Setting	2.5 bar
Bypass Valve Pressure Rating	3.5 bar	Flow Rate	0 to 80 l/min
Options	With Bypass	Connection Type	G1"
