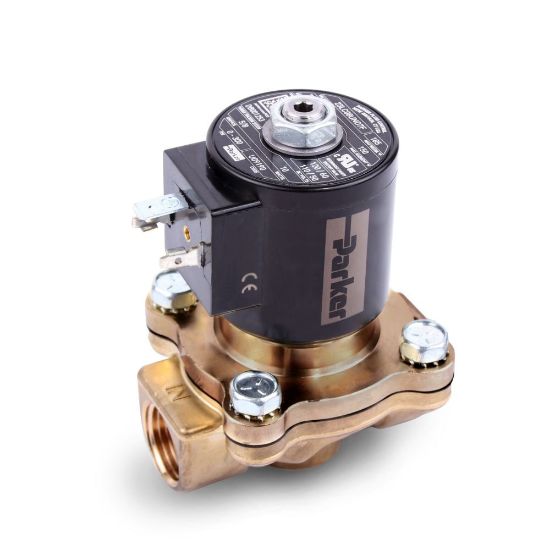

Parker 22LC06TN7D - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 22LC06TN7D

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid Control Division	Seal Material	NBR
Orifice Size	5/8 inch	Body Material	Lead-Free Brass
Actuation Type	Internal Pilot	Minimum Pressure Differential	5 psi
Configuration	All Ports in Body	Maximum Ambient Temperature	125 °F
Function	2-Way	Specifications Met	-
Maximum Fluid Temperature	185 °F	Exhaust Flow Coefficient	n/a
Port Size	NPT 3/8 inch	Maximum Pressure Differential	150 psig (10 watt)
Installation	IOM7222	Input Voltage	Pressure Vessel Only (DC Voltage)
Power Consumption	10 or 22 W	Main Flow Coefficient	3 Cv
Coil Specifications Met	Requires DC Voltage G7 Series Coil Kit	Preventive Maintenance Kit	7R024
Seal Material	NBR	Body Material	Lead-Free Brass
Configuration	Normally Closed	Function	2-Way
Port Size (inch)	3/8 NPT	Voltage	Pressure Vessel Only (DC Voltage)
Coil Type	Requires DC Voltage G7 Series Coil Kit	Orifice Size (inch)	5/8
Minimum Pressure Differential (psi)	5	Maximum Operating Pressure Differential (psig)	300 (22 watt), 150 (10 watt)
