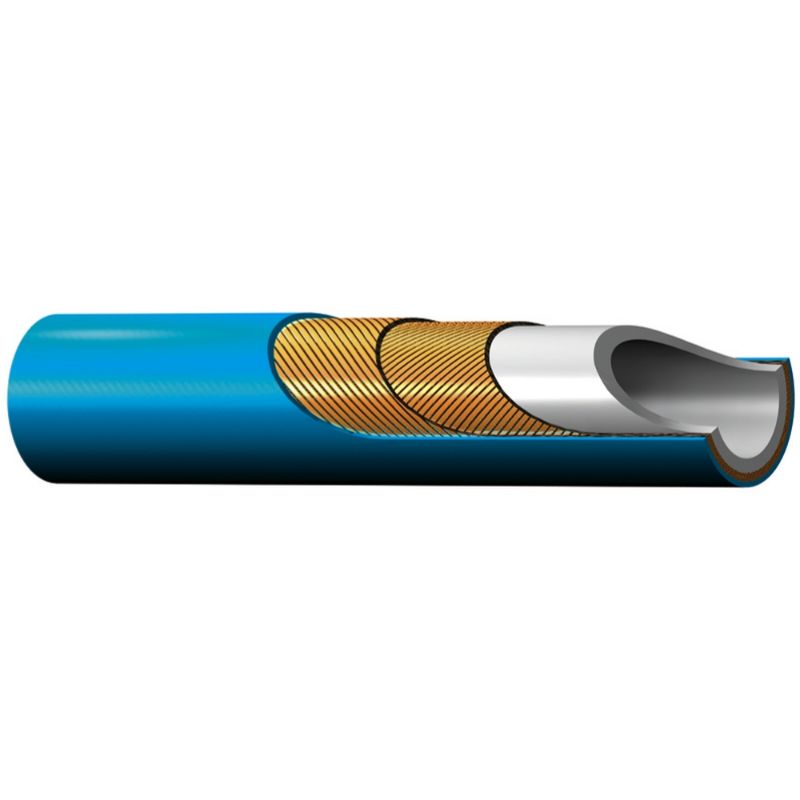

Picture of Parker 2248D-03V32-TC - Water Blast Hose - 2240D/2248D

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2248D-03V32-TC - Water Blast Hose - 2240D/2248D

High Pressure Water Blast 2240D/2248D Hoses are developed for use as a high pressure tube cleaning hose and for ultra high pressure applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 2248D-03V32-TC
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionParflex DivisionMinimum Operating Temperature14 °F
Outside Diameter0.370 inchMediaChemicals
Weight0.09 kg/mMaximum Operating Temperature70 °C
Cover MaterialPolyamide (PA)Inside Diameter4.8 mm
Design Factor2.5:1Specifications MetDIN 1829-2
Maximum Operating Pressure1400 barApplicationShipbuilding
Compatible FittingTX SeriesMinimum Bend Radius95 mm
Hose Inner Tube MaterialPolyoxymethylene (POM)Hose Reinforcement Material2 Spirals of Maximum Tensile Steel Wire
Hose I.D. (inch)3/16Maximum Working Pressure (psi)20300
