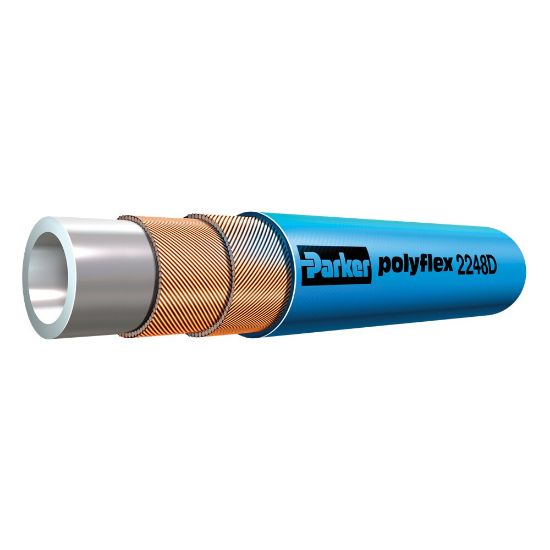

Picture of Parker 2248D-025V32-TC - Water Blast Hose - 2240D/2248D

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2248D-025V32-TC - Water Blast Hose - 2240D/2248D

High Pressure Water Blast 2240D/2248D Hoses are developed for use as a high pressure tube cleaning hose and for ultra high pressure applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 2248D-025V32-TC
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionParflex DivisionMinimum Operating Temperature14 °F
Minimum Bend Radius3 inchMediaWater
ApplicationConstruction EquipmentWeight0.07 lb/ft
Cover MaterialPolyamide (PA)Design Factor2.5:1
Specifications MetDIN 1829-2Maximum Operating Pressure1500 bar
Maximum Operating Temperature158 °FInside Diameter5/32 inch
Outside Diameter7.9 mmCompatible FittingTX Series
Hose Inner Tube MaterialPolyoxymethylene (POM)Hose Reinforcement Material2 Spirals of Maximum Tensile Steel Wire
Hose I.D. (inch)5/32Maximum Working Pressure (psi)21750
