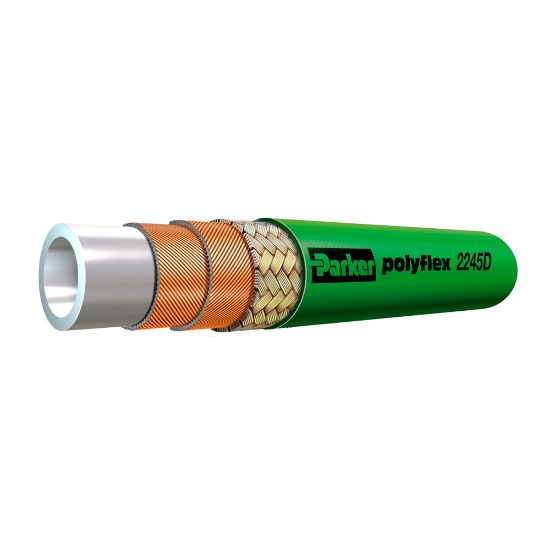

Picture of Parker 2245D-03V33 - Parflex High Pressure Flex Lance Hose - 2245D

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2245D-03V33 - Parflex High Pressure Flex Lance Hose - 2245D

Parker 2245D flex lance hose is DIN EN1829-2 compliant and operates up to 15,000 psi.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 2245D-03V33
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionParflex DivisionMinimum Operating Temperature14 °F
Maximum Operating Pressure15000 psiMediaWater
Cover ColorGreenCover MaterialPolyamide (PA)
Weight0.21 kg/mInside Diameter4.8 mm
ApplicationIndustrialSpecifications MetDIN 1829-2
Maximum Operating Temperature158 °FDesign Factor2.7
Outside Diameter0.420 inchCompatible FittingAX Series
Minimum Bend Radius3.74 inchHose Inner Tube MaterialPolyoxymethylene (POM)
Hose Reinforcement Material2 Spirals of High Tensile Steel Wire and 1 Braid of Steel WireSize-3
