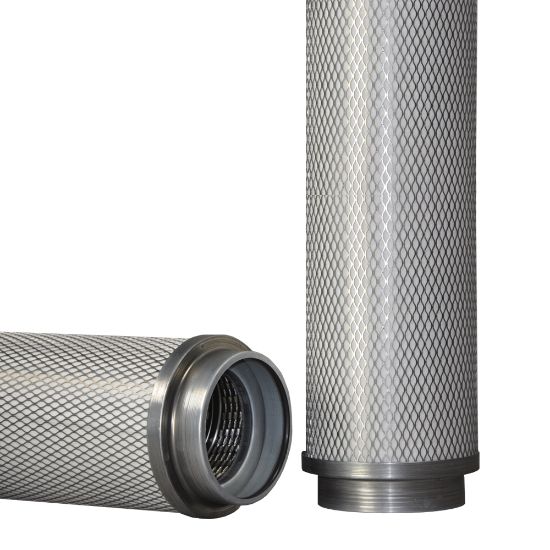

Parker 22097 - P-CEPTOR™ NGGC Gas Coalescer Cartridge

P-Ceptor™ NGGC Gas Coalescers use pleated, treated glass media to provide effective removal of small aerosol mist and liquid droplets from natural gas streams.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 22097

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Industrial Process Filtration Division	Brand	PECO
Product Type	Filter Cartridge	Division	Industrial Process Filtration Division
Technology	Filtration	Filter Construction	Pleated
Industry	Oil and Gas	Application	Gas Coalescing
Flow Direction	Inside-to-Outside	pH Range	3-9
Micron Rating	PL-51: 99.97% ≥ 0.3 Liquid Droplets	Product Series	NGGC
Filter Material	Glass	Quantity per Box	1
Maximum Operating Temperature	240	Model Number	ELMT NGGC-539-IC-003FV-347-RT PL-51
Changeout Pressure Differential	12 to 14	Maximum Pressure Differential	25
End Cap Material	Tin-Plated Steel	Seal Material	Viton
Core Material	304SS	Cartridge Length	39.5625"
End Cap Configuration	SOE - Closed top w/ bolt hole, open bottom w/ internal 347 o-ring	Nominal Inside Diameter	4.1"
Nominal Outside Diameter	5.5"	Body Material	Expanded Metal
