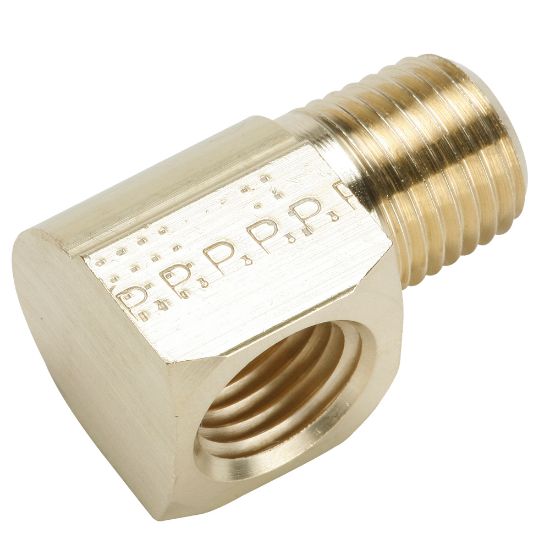

Parker 2202P-4-2 - Brass Pipe Fittings

Name: Parker 2202P-4-2 - Brass Pipe Fittings
SKU: 2202P-4-2
Price: 7.37 USD
Availability: InStock

Parker's forged and extruded brass pipe fittings meet functional requirements of SAE J530 and SAE J531.

AFP Availability:

40 In Stock

North Chesterfield, VA	15
Johnson City, TN	6 (Pickup only)
Richmond, VA	4 (Pickup only)
West Knoxville, TN	4
East Knoxville, TN	4
Jacksonville, FL	3
Fayetteville, NC	3
Summerville, SC	1

Partner Available:

439 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 2202P-4-2

$7.37/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-65 °F
Body Material	Brass	Tube Material	Copper, Brass, Iron Pipe
Specifications Met	SAE J530, SAE J531	Dimensional Weight	0.2759 lb
Maximum Operating Pressure	1000 psi	Product Style	Female Pipe to Male Pipe
Length	n/a	Connection 1 Size	1/4"
Connection 1 Type	Female Pipe	Connection 2 Size	1/8"
Connection 2 Type	Male Pipe	Shape	Elbow 90° - Extruded Street Fitting
