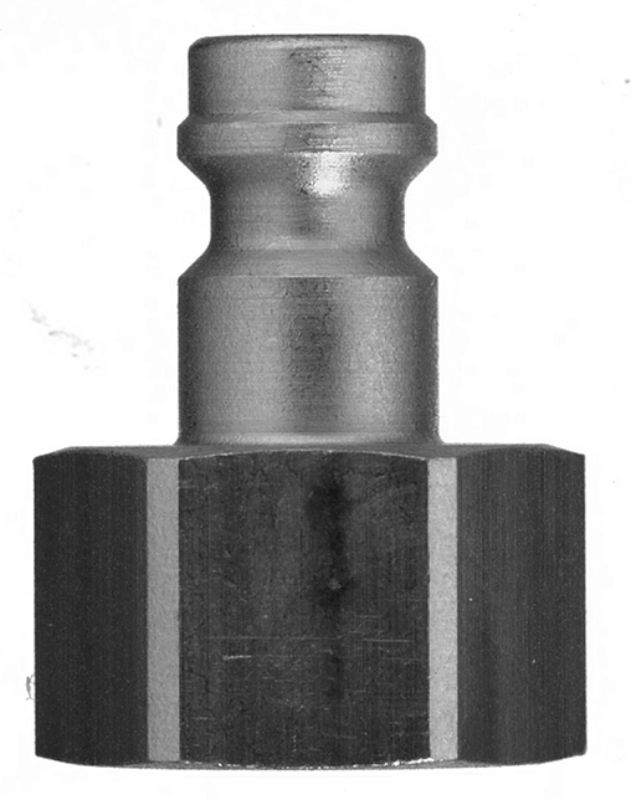

Parker 21SFIN10MXN - Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	200 In Stock

Brand Parker

Part No. 21SFIN10MXN

$8.23/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	up to 464 °F
Connection Type	Female	Division	Quick Coupling Division
Function	Straight-Through	Valve Type	Without Valve
Operation Type	Sleeve	Body Material	Brass
Diameter	5.0	Compatible Fitting	Series 21 Coupler
Technology	Pneumatics	Media	Compressed Air
Region of Origin	Germany	Sleeve Material	Brass
Shape	Straight	Product Type	Quick Couplings Pneumatic
Division	Low Pressure Connectors Europe Division	Plating Type	Nickel-plated
Product Style	Quick-Connect	Application	Air, High Flow
Minimum Operating Temperature	-40 °F	Brand	Rectus
Coupling Half	Plug	Product Series	Series 21
Interchange Type	European Profile	Connection Size	1/8 inch
Seal Material	Without Seal	Maximum Operating Pressure	Depends on the Choosen Associated Coupler
Body Material	BRASS	Connection Thread Size	1/8"-27
Thread Style	Female	Hose I.D.	n/a
Body Size	1/8"	Coupling Half	Nipple

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
