*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

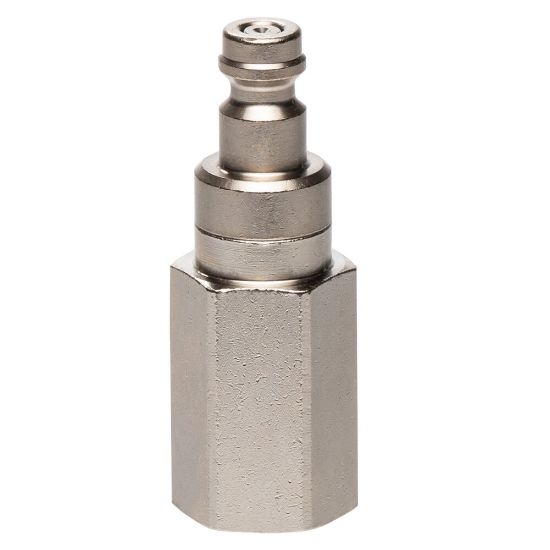

Parker 21SBIN13MVN - Double Shut-off, Miniature Size Quick Couplings - Rectus 21 DSO Series

Parker's double shut off, miniature quick couplers and nipples are corrosion resistant for applications where small, low pressure fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 21SBIN13MVN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Plating Type	Nickel Plated	Flow Rate	0.8
Division	Quick Coupling Division	Hex Size	0.67
Maximum Operating Temperature	400.0	Application	Fluid or gas, low pressure
Valve Type	Poppet	Body Material	Brass
Maximum Operating Pressure	250.0	Seal Material	Fluorocarbon
Product Type	Push to Connect	Minimum Operating Temperature	-15.0
Coupling Half	Male Nipple	Body Size	1/8
Connection Type	Female NPSF	Connection Thread Size	1/4 - 18

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
