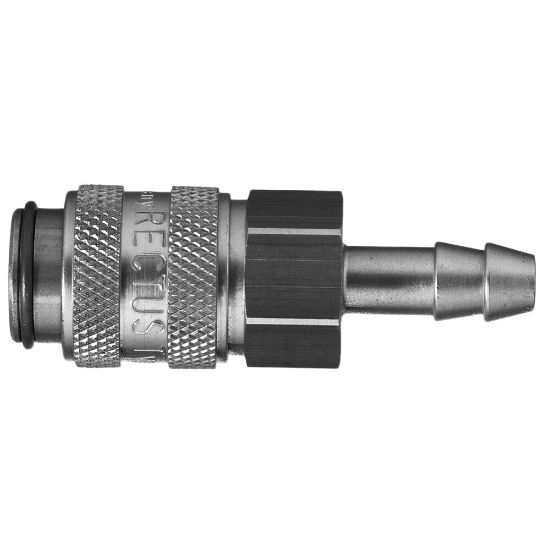

Parker 21KBTF06MVN - Double Shut-off, Miniature Size Quick Couplings - Rectus 21 DSO Series

Parker's double shut off, miniature quick couplers and nipples are corrosion resistant for applications where small, low pressure fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 21KBTF06MVN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Type	Push to Connect	Body Material	Brass
Seal Material	Fluorocarbon	Minimum Operating Temperature	-15.0
Connection Size	6 mm	Division	Quick Coupling Division
Flow Rate	0.8	Application	Fluid or gas, low pressure
Outside Diameter	16 mm	Hex Size	0.55
Plating Type	Nickel Plated	Maximum Operating Temperature	400.0
Valve Type	Poppet	Maximum Operating Pressure	250.0
Diameter	5 mm (nominal)	Connection Type	Hose barb
Coupling Half	Female Coupler	Connection Thread Size	n/a
Body Size	1/8

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
