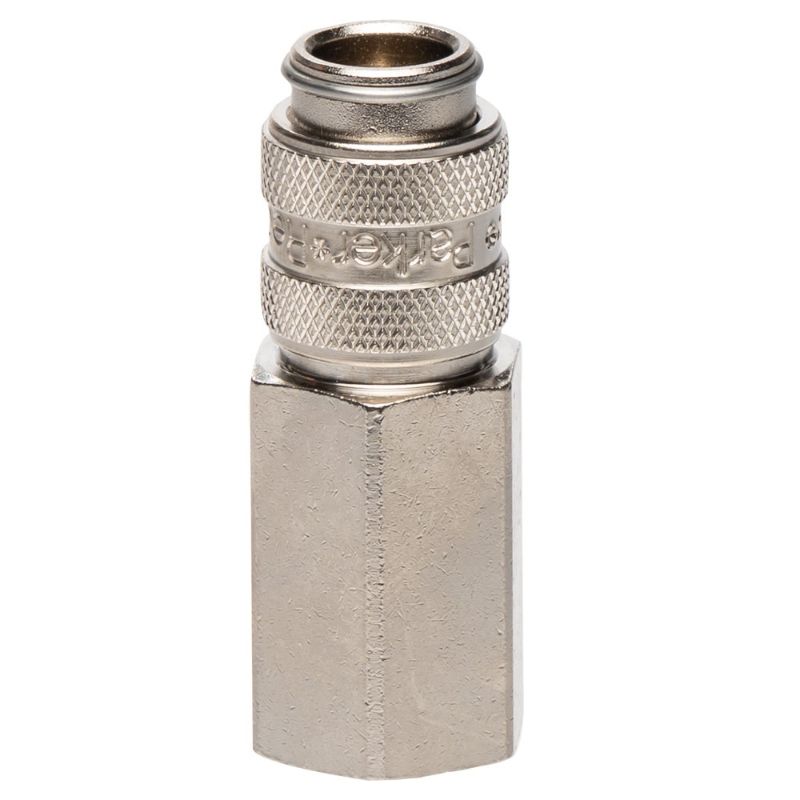

Parker 21KBIN10MVN - Double Shut-off, Miniature Size Quick Couplings - Rectus 21 DSO Series

Parker's double shut off, miniature quick couplers and nipples are corrosion resistant for applications where small, low pressure fluid lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 21KBIN10MVN

$28.74/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Valve Type	Poppet	Maximum Operating Temperature	400.0
Maximum Operating Pressure	250.0	Minimum Operating Temperature	-15.0
Plating Type	Nickel Plated	Application	Fluid or gas, low pressure
Product Type	Push to connect	Flow Rate	0.8
Seal Material	Fluorocarbon	Hex Size	0.55
Body Material	Brass	Connection Thread Size	1/8 - 27
Coupling Half	Female Coupler	Body Size	1/8
Connection Type	Female NPSF
