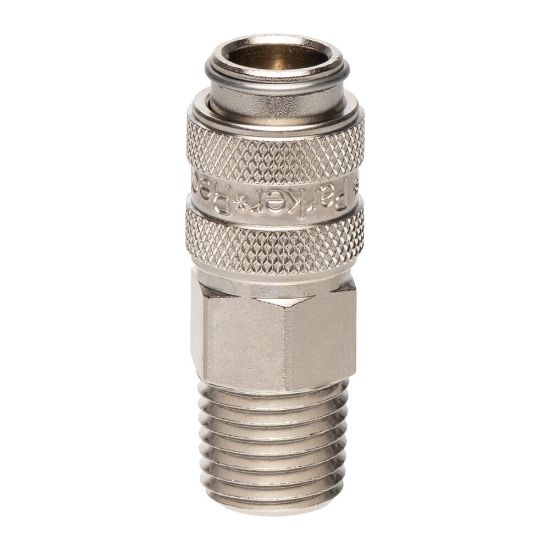

Parker 21KBAN10MVN - Double Shut-off, Miniature Size Quick Couplings - Rectus 21 DSO Series

Parker's double shut off, miniature quick couplers and nipples are corrosion resistant for applications where small, low pressure fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 21KBAN10MVN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Type	Poppet	Application	Fluid or gas, low pressure
Maximum Operating Pressure	250.0	Body Material	Brass
Product Type	Push to Connect	Seal Material	Fluorocarbon
Flow Rate	0.8	Minimum Operating Temperature	-15.0
Division	Quick Coupling Division	Plating Type	Nickel Plated
Maximum Operating Temperature	400.0	Hex Size	0.55
Coupling Half	Female Coupler	Connection Type	Male NPTF
Body Size	1/8	Connection Thread Size	1/8 - 27

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
