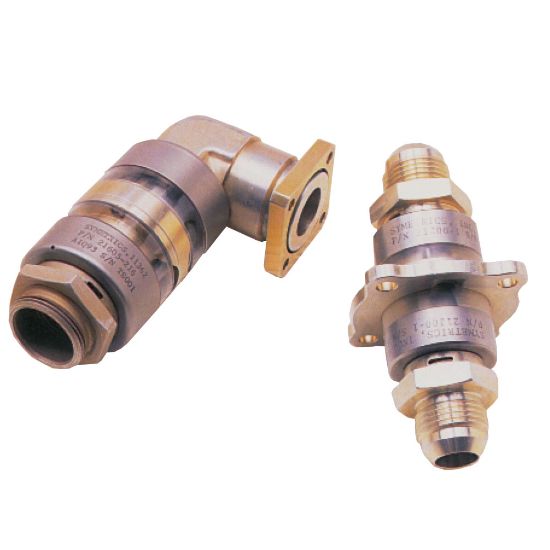

Parker 21605 Series Dual Valve - Breakaway Valve

Proven lifesavers, Stratoflex’s breakaway valves separate under high loads on fluid lines exceeding a predetermined value. Upon separation, the valves automatically seal the fluids in the lines to effectively prevent spills.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 21605 Series Dual Valve

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	60	Maximum Fluid Temperature	160
Body Material	Aluminum Alloy	Division	Stratoflex Products Division
Minimum Fluid Temperature	-65	Weight	1.15
For Fluid Type	Fuel (JP-5, JP-8)	Flange Size	Installation, Consult Parker
Fitting Type	SAE AS4395E16	Flow Diameter	0.84 inch
Burst Pressure	185 psig	Proof Pressure	120 psig
Outside Diameter	2.18	Operating Pressure	60
Inlet Connection Size	1.0 inch	Minimum Operating Pressure	-5
Overall Length (inch)	6
