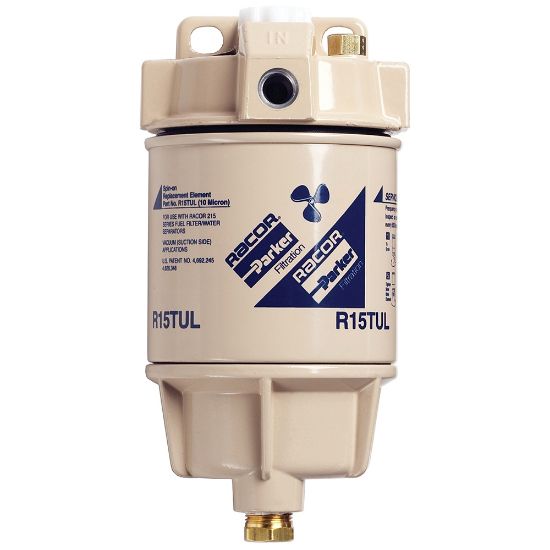

Picture of Parker 215RMAM - Marine Fuel Filter Water Separator – Racor Spin-on Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 215RMAM - Marine Fuel Filter Water Separator – Racor Spin-on Series

Racor Marine Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. UL-approved versions available.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 215RMAM
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionEngine Mobile Original Equipment DivisionBrandRacor
Maximum Operating Pressure30Weight1.2 lb / 0.5 Kg
Clean Pressure Drop0.15Filter Element Type10 Micron Aquabloc Spin-on
Operating Temperature-40 to 250Maximum Fluid Temperature190.0
Head MaterialPower Coated Aluminium AlloyMounting TypeBracket Included
Product SeriesMarine Spin-on FF/WSDepth4
Width3.9Height7.7
Number of Ports1 Inlet / 2 OutletCompatible ElementR15S = 2 micron<br/>R15TUL = 10 micron<br/>R15P = 30 micron
Micron Rating98% @ 10 MicronFlow Rate15 gph / 57 lph
Port Size1/4”-18 NPTFBowl MaterialAluminum Bowl
Filtered MediumDieselUL CertificationYes
Integral Primer PumpYes
Product resources

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

Distributor Support, Literature and Reference Materials, Selector Guides
