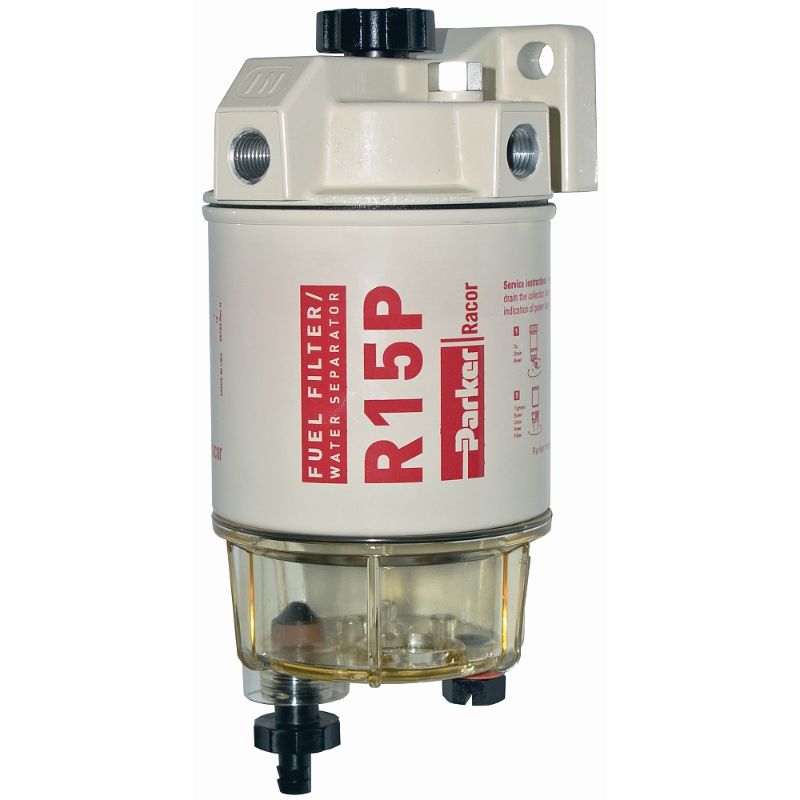

Parker 215R30 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 215R30

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Operating Temperature	-40 to 250 °F	Product Type	Diesel Spin-on FF/WS
Head Material	Aluminium Alloy	For Fluid Type	Diesel and Gasoline
Filter Element Type	30 Micron Aquabloc Spin-on	Accessories Included	See Product Support Tab
Weight	1.8 lb / 0.80 Kg	Maximum Operating Pressure	30 psi
Depth	102.0 mm	Width	4 inch
Height	211.0 mm	Number of Ports	1 Inlet / 2 Outlet
Compatible Element	R15S = "2" Micron<br/>R15T = 10 Micron<br/>R15P = 30 Micron	Clean Pressure Drop	0.12 psi
Maximum Fluid Temperature	190.0 °F	Location	North America and EMEA regions
Micron Rating	98% @ 30 Micron	Mounting	Bracket Included
Bowl Type	Standard, Clear Engineering Plastic	Flow Rate	15 gph (57 lph)
Part Type	Filter Assembly	Port Size	1/4" NPTF
Bowl Material	Clear Engineering Plastic	Heater Power Rating	No Heater
Product Series	Diesel Spin-on 200	Integral Primer Pump Included	Hand Plunger Priming Pump (Diesel or Gasoline)

Product resources

Literature and Reference Materials

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--200 Diesel Spin-on--RSL0376 (PDF)
