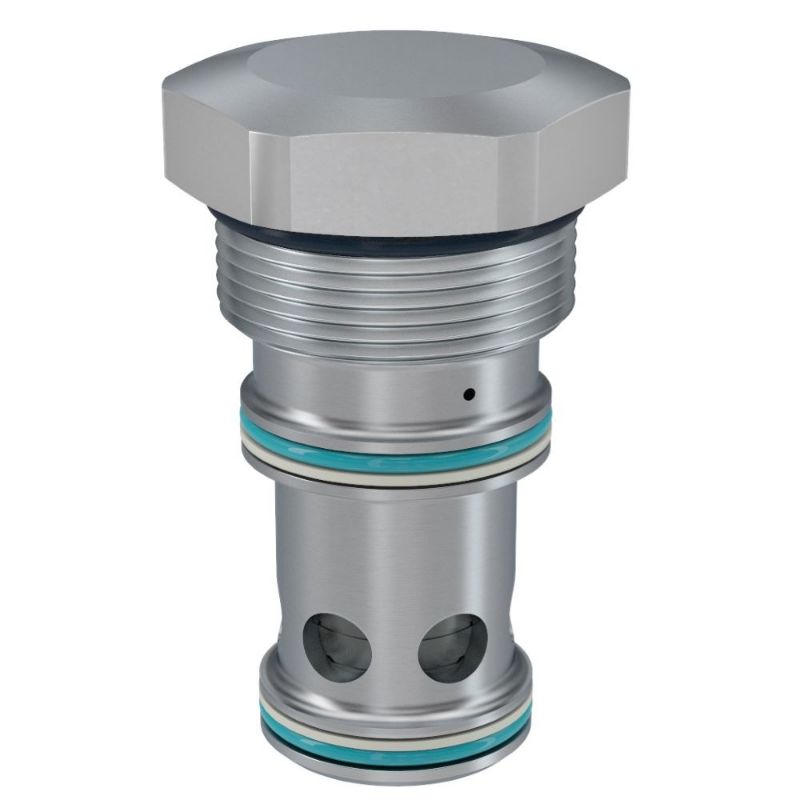

Parker 20SLC2-A-75 - Spool Type Logic Element

Name: Parker 20SLC2-A-75 - Spool Type Logic Element
SKU: 20SLC2-A-75
Price: 152.25 USD
Availability: InStock

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

7 In Stock

Richmond, VA

Partner Available:

Quote Required

Brand Parker

Part No. 20SLC2-A-75

$152.25

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Vented	Internal	Division	Hydraulic Systems Division
Function	Logic Valve	Leak Rate	82
Configuration	Normally Closed (NC)	Seal Material	Polyurethane EPS
Actuation Type	Pilot to Close	Flow Direction	Nose to Side (1-2)
For Fluid Type	Mineral-based Hydraulic Fluids	Operation Type	Pilot Operated
Pilot Location	External	Valve Material	Steel
Switching Pressure	5.2 bar	Operating Temperature	-35 to 225 °F
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Operating Pressure	240 bar
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	240 bar
Maximum Operating Temperature	225 °F	Minimum Operating Temperature	-35 °F
Dampening Orifice Included	No	Weight	1.78 lb
Cavity Size	C20-3S	Maximum Flow Rate	303 L/min
Installation Torque	113 Nm	Configuration	Normally Closed
Seal Material	Polyurethane EPS	Switching Pressure	75 PSI, 5.2 BAR
Flow Direction	Nose to Side (1-2)	Dampening Orifice Included	No
Maximum Flow Rate	80 GAL/MIN, 303 L/MIN
