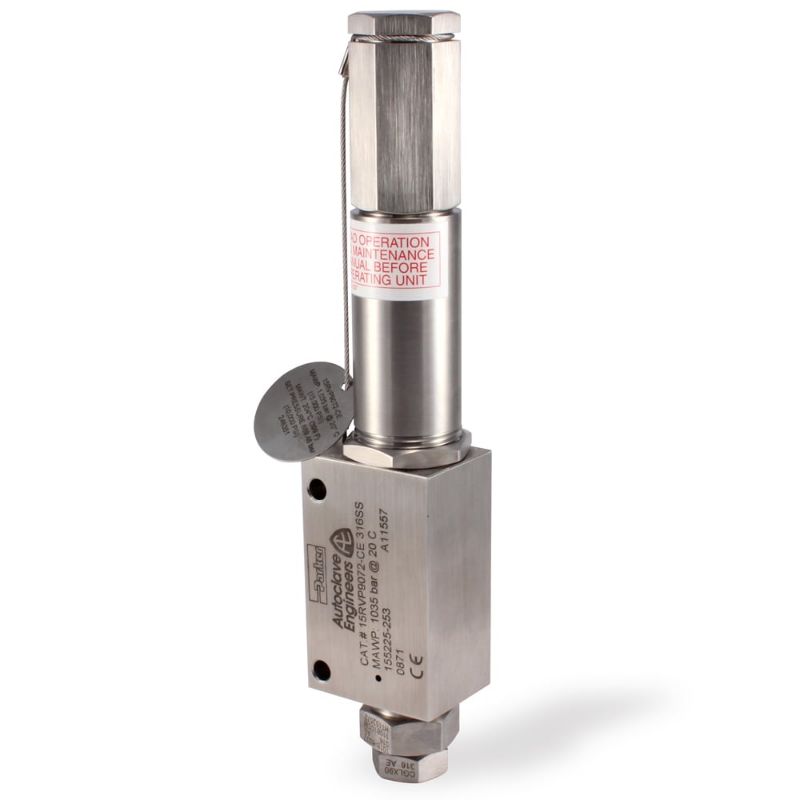

Parker 20RVP9072 - Autoclave RVP Series Relief Valve - 3,000 psi (206 bar) to 75,000 psi (5171 bar)

Parker Autoclave's RVP Series relief valves provide reliable venting of gases for set pressures from 3,000 psi (206 bar) to 75,000 psi (5171 bar). The valve’s metal seat design provides shut-off of liquids and gases to commercial standards.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20RVP9072

$1,175.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-423 °F
Orifice Size	3.96 mm	Inlet Connection Size	SF562CX
Outlet Connection Size	NPT 3/4 inch	Materials of Construction	Stainless Steel 316
Maximum Operating Pressure	1379 bar	Division	Instrumentation Products Division
Maximum Operating Temperature (F)	400	Maximum Operating Temperature (C)	204
Maximum Working Pressure (psi)	20000	Maximum Working Pressure (Bar)	1379

Product resources

Literature and Reference Materials

Autoclave Engineers RVP-RVS Series Relief Valve Catalog Relief Valves to 75,000 PSI - 0129SE (PDF)
