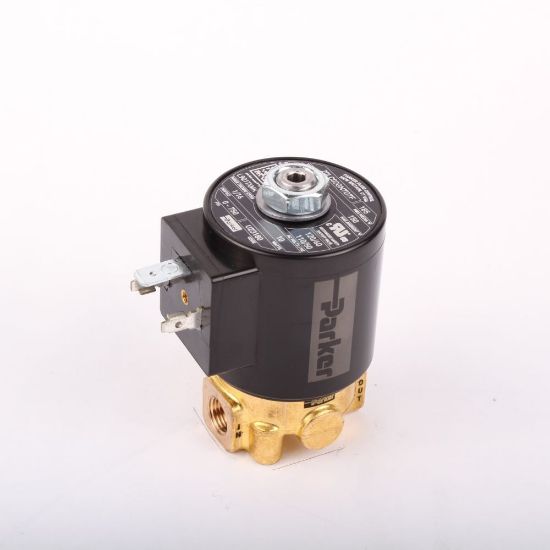

Parker 20LC041N7D7G - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20LC041N7D7G

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid Control Division	Seal Material	NBR
Actuation Type	Direct Acting	Minimum Pressure Differential	0
Body Material	Lead-Free Brass	Configuration	Normally Closed (NC)
Specifications Met	CURus Safety Shutoff	Function	2-Way
Port Size	NPT 1/4	Installation	IOM7220
Orifice Size	9/32	Input Voltage	220/50
Power Consumption	10	Main Flow Coefficient	1.06
Maximum Fluid Temperature	185	Maximum Ambient Temperature	150
Maximum Pressure Differential	40	Coil Specifications Met	IP65
Exhaust Flow Coefficient	n/a	Preventive Maintenance Kit	7R004
Seal Material	NBR	Coil Type	DIN 43650A / ISO 4400
Body Material	Lead-Free Brass	Configuration	Normally Closed
Voltage	240/60, 220/50	Function	2-Way
Port Size (inch)	1/4 NPT	Orifice Size (inch)	9/32
Minimum Pressure Differential (psi)	0	Maximum Operating Pressure Differential (psig)	40
