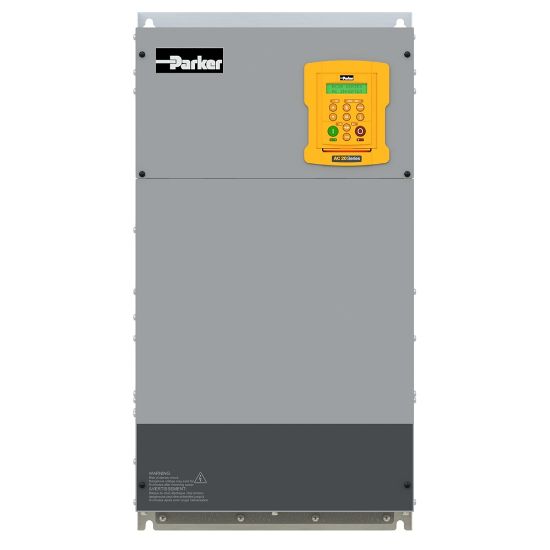

Parker 20G-48-2650-BF - AC Variable Frequency Drives, HP Rated - AC20 Series

The AC20 advanced compact drive provides Ethernet connectivity and Safe Torque Off in an economical but highly featured drive for open or closed-loop AC induction and Permanent Magnet motor control in applications up to 250HP/180kW

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20G-48-2650-BF

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Brand	Parker
Drive Axis Type	Single Axis Technology	Operating Altitude	up to 1000 m ASL (derate > 1000m)
Specifications Met	CE (EMC & LVD)	Product Type	AC Drive
Input Voltage	3*400/480	Overload Rating	150 % for 60s
Modes of Control	V/Hz	Compatible Motor Type	Induction
Operating Temperature	0 to 40 °C (derate up to 45°C max)	Communication Interface	Ethernet TCP/IP
Output Power	200	Product Series	AC20
Output Current Rating	230	Compatible Feedback Device	Incremental Encoder
Input Voltage	3*400/480VAC	Output Current Rating	230 A
