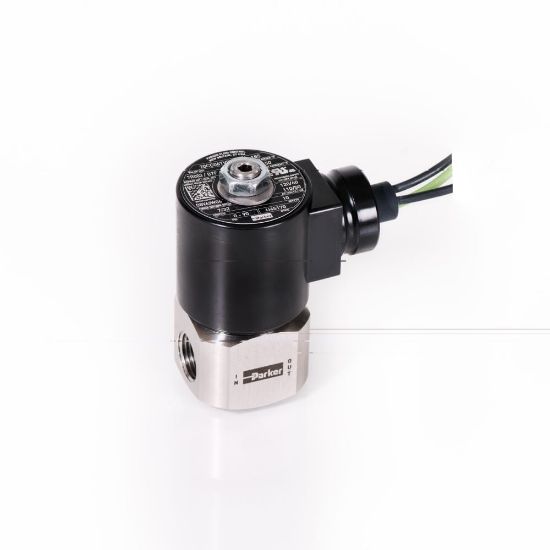

Parker 20CC04EP7B7A - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20CC04EP7B7A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid Control Division	Input Voltage	12.0
Actuation Type	Direct Acting	Minimum Pressure Differential	0
Configuration	Normally Closed (NC)	Body Material	Stainless Steel 303
Orifice Size	3/64	Specifications Met	CURus General Purpose
Function	2-Way	Port Size	NPT 1/4
Installation	IOM7220	Seal Material	UR (Urethane)
Power Consumption	10	Main Flow Coefficient	0.05
Maximum Fluid Temperature	140	Preventive Maintenance Kit	7R001
Maximum Ambient Temperature	150	Maximum Pressure Differential	2200
Coil Specifications Met	IP69	Exhaust Flow Coefficient	n/a
Configuration	Normally Closed	Voltage	12 VDC
Function	2-Way	Coil Type	Leads-only (Incl. Ground Lead)
Body Material	303 Stainless Steel	Seal Material	UR (Urethane)
Port Size (inch)	1/4 NPT	Orifice Size (inch)	3/64
Minimum Pressure Differential (psi)	0	Maximum Operating Pressure Differential (psig)	2200
