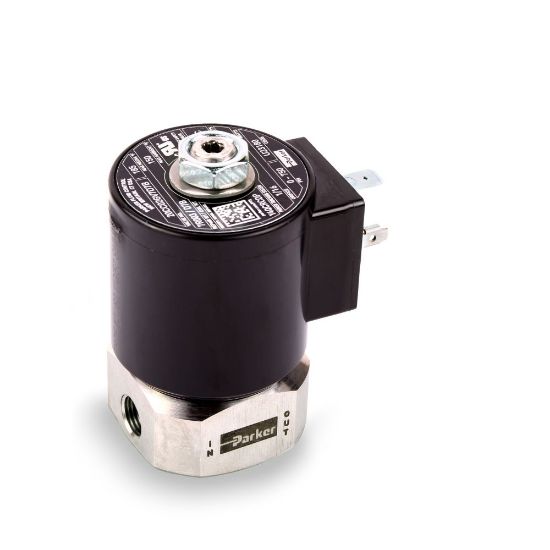

Parker 20CC041V7D7E - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20CC041V7D7E

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid Control Division	Input Voltage	24/60
Actuation Type	Direct Acting	Minimum Pressure Differential	0
Seal Material	FKM	Configuration	Normally Closed (NC)
Body Material	Stainless Steel 303	Specifications Met	CURus Safety Shutoff
Function	2-Way	Port Size	NPT 1/4
Installation	IOM7220	Orifice Size	9/32
Power Consumption	10	Main Flow Coefficient	1.06
Maximum Fluid Temperature	185	Preventive Maintenance Kit	7R003
Maximum Ambient Temperature	150	Maximum Pressure Differential	40
Coil Specifications Met	NEMA 4	Exhaust Flow Coefficient	n/a
Coil Type	DIN 43650A / ISO 4400	Seal Material	FKM
Configuration	Normally Closed	Voltage	24/60
Function	2-Way	Body Material	303 Stainless Steel
Port Size (inch)	1/4 NPT	Orifice Size (inch)	9/32
Minimum Pressure Differential (psi)	0	Maximum Operating Pressure Differential (psig)	40
