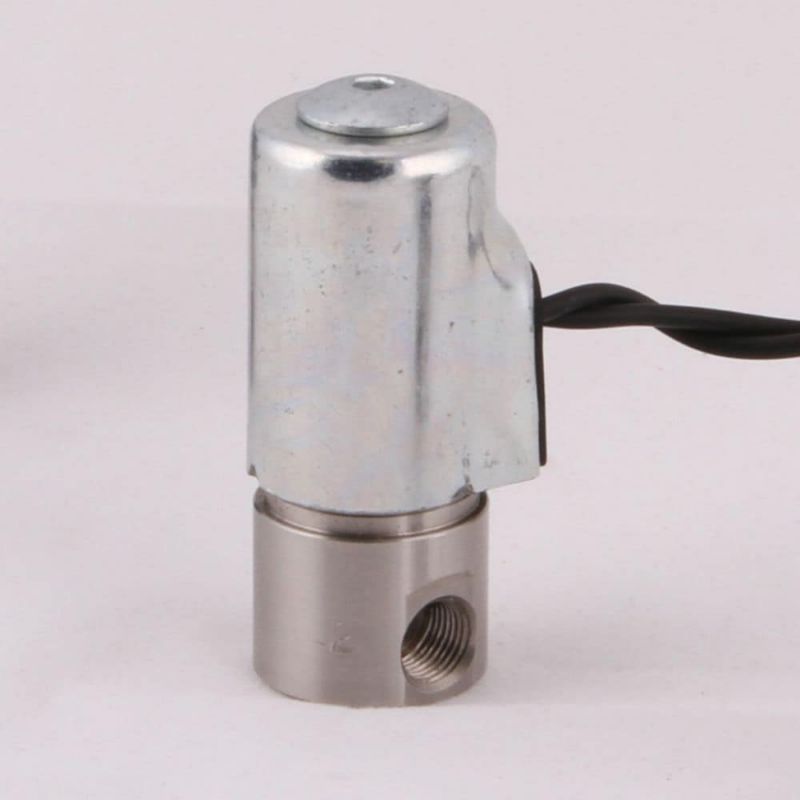

Picture of Parker 20CC02PV4B2B - G4 Series Miniature Solenoid Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 20CC02PV4B2B - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 20CC02PV4B2B
$85.47
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPort TypeNPT
DivisionFluid Control DivisionFunctionNormally Closed (NC)
Valve Type2-WayActuation TypeDirect Acting
Minimum Pressure Differential0 psiMediaGeneral Purpose
Seal MaterialFKMPort Size1/8 inch
Body MaterialStainless Steel 303ConfigurationAll Ports in Body
Coil TypeGrommetInsulation ClassF (155°C)
Input Voltage24 VDCPower Consumption8 W
Specifications MetCURus Safety ShutoffMaximum Fluid Temperature240 °F
Maximum Ambient Temperature125 °FOrifice Size1/8 inch
Main Flow Coefficient0.32 CvMaximum Pressure Differential60 psi
InstallationIOM 204Preventive Maintenance Kit4R001
Product resources

Literature and Reference Materials
