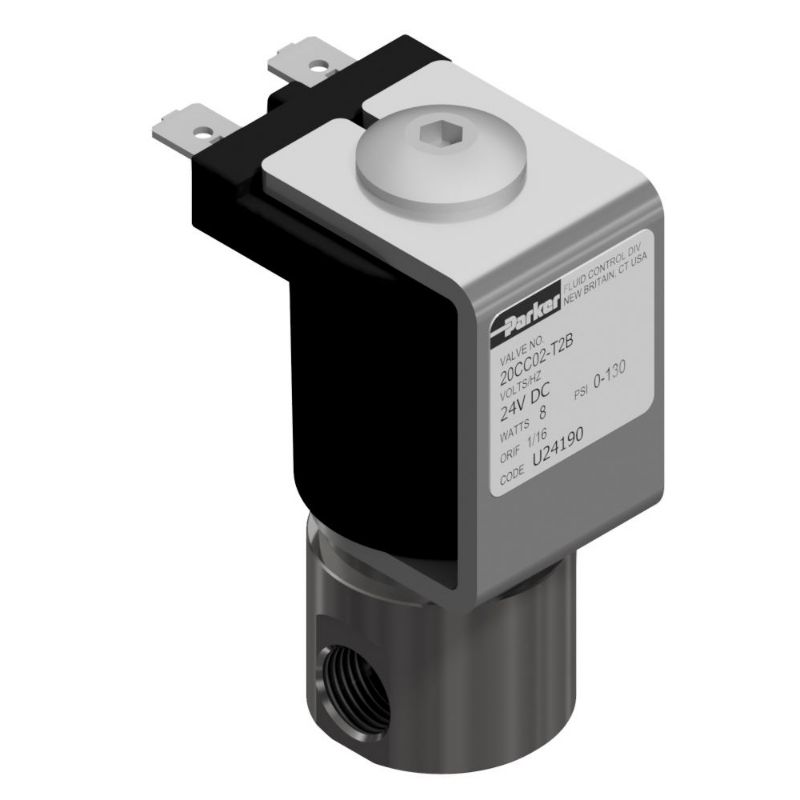

Parker 20CC02LV4T2F - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20CC02LV4T2F

$89.81

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Division	Fluid Control Division	Function	Normally Closed (NC)
Valve Type	2-Way	Actuation Type	Direct Acting
Minimum Pressure Differential	0 psi	Media	General Purpose
Seal Material	FKM	Input Voltage	120/60 VAC
Specifications Met	CE	Port Size	1/8 inch
Body Material	Stainless Steel 303	Configuration	All Ports in Body
Coil Type	1/4" Tab/ Spade	Insulation Class	F (155°C)
Maximum Fluid Temperature	240 °F	Orifice Size	3/32 inch
Power Consumption	8.5 W	Main Flow Coefficient	0.22 Cv
Maximum Ambient Temperature	135 °F	Maximum Pressure Differential	320 psi
Installation	IOM 204	Preventive Maintenance Kit	4R001
