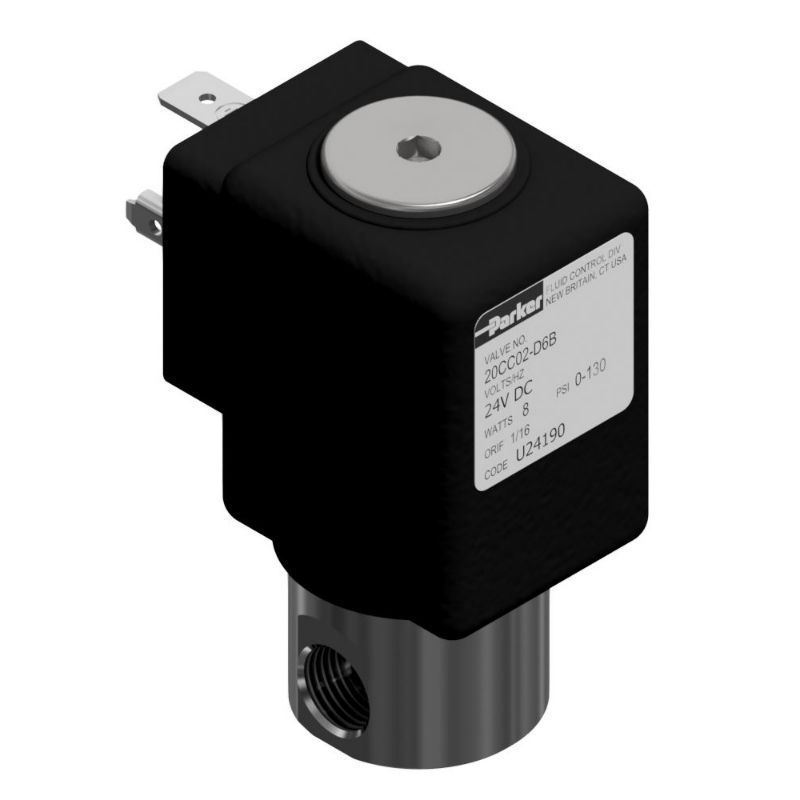

Parker 20CC02LV4D6B - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20CC02LV4D6B

$93.91

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Division	Fluid Control Division	Function	Normally Closed (NC)
Valve Type	2-Way	Actuation Type	Direct Acting
Minimum Pressure Differential	0 psi	Media	General Purpose
Coil Type	DIN 43650A / ISO 4400	Seal Material	FKM
Ingress Protection Rating	NEMA 4	Specifications Met	CE
Port Size	1/8 inch	Body Material	Stainless Steel 303
Configuration	All Ports in Body	Input Voltage	24 VDC
Insulation Class	H (180°C)	Power Consumption	8 W
Maximum Fluid Temperature	240 °F	Maximum Ambient Temperature	125 °F
Orifice Size	3/32 inch	Main Flow Coefficient	0.22 Cv
Maximum Pressure Differential	130 psi	Installation	IOM 204
Preventive Maintenance Kit	4R001
