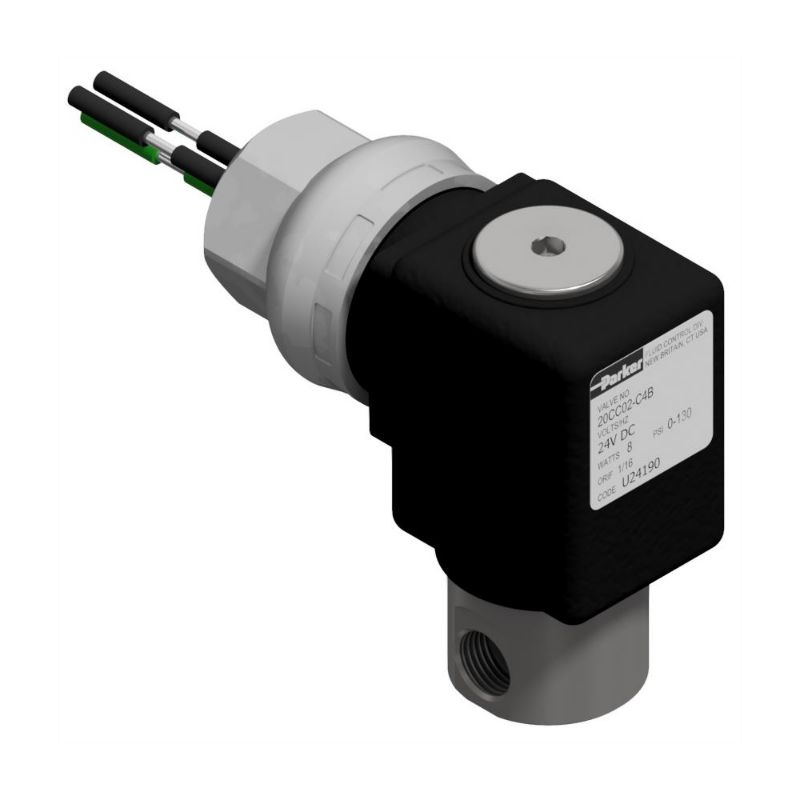

Parker 20CC02EV4C4F - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Availability:	Quote Required
Partner Available:	4 In Stock

Brand Parker

Part No. 20CC02EV4C4F

$97.70

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Division	Fluid Control Division	Function	Normally Closed (NC)
Valve Type	2-Way	Actuation Type	Direct Acting
Minimum Pressure Differential	0 psi	Media	General Purpose
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Seal Material	FKM
Input Voltage	110/50 VAC	Ingress Protection Rating	NEMA 4
Specifications Met	CE	Port Size	1/8 inch
Body Material	Stainless Steel 303	Configuration	All Ports in Body
Insulation Class	F (155°C)	Orifice Size	3/64 inch
Main Flow Coefficient	0.06 Cv	Maximum Fluid Temperature	240 °F
Power Consumption	8.5 W	Maximum Ambient Temperature	135 °F
Installation	IOM 204	Preventive Maintenance Kit	4R001
Maximum Pressure Differential	950 psi
