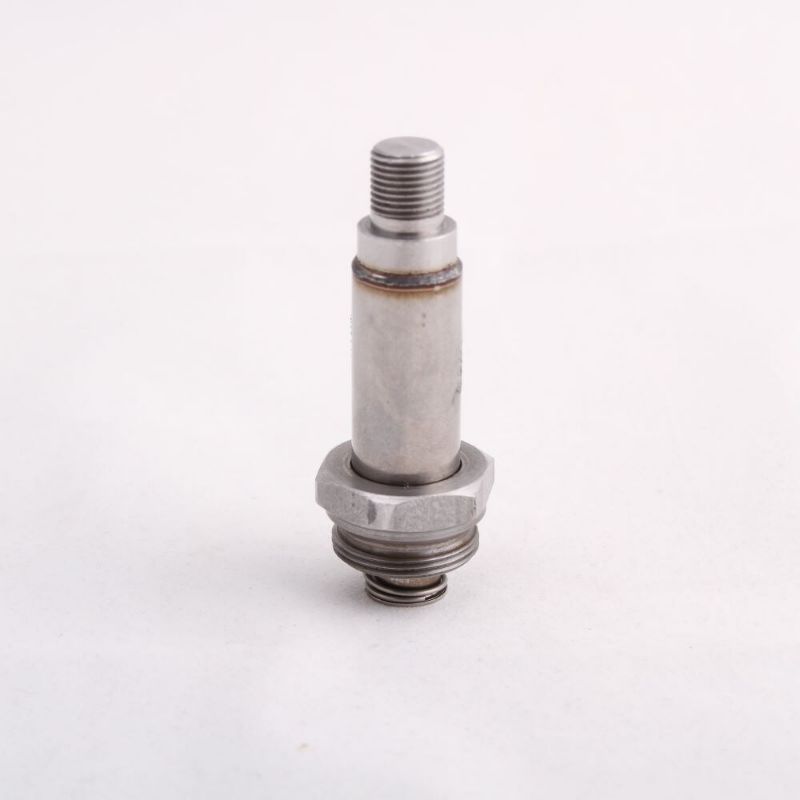

Parker 209CL4GE4 - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 209CL4GE4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid Control Division	Function	Normally Closed (NC)
Valve Type	2-Way	Actuation Type	Direct Acting
Minimum Pressure Differential	0	Media	General Purpose
Body Material	Stainless Steel 303	Port Size	3/4-24 UNS-2A
Maximum Pressure Differential	625 psi (AC)	Specifications Met	NSF 169
Configuration	All Ports in Body	Coil Type	Requires G4 Series Coil Kit
Port Type	Cartridge	Installation	IOM CV4
Orifice Size	1/16	Input Voltage	Pressure Vessel Only (AC or DC Voltage)
Seal Material	EPDM NSF	Power Consumption	8.5 W (AC)
Main Flow Coefficient	0.10	Maximum Fluid Temperature	240
Preventive Maintenance Kit	n/a	Maximum Ambient Temperature	135 °F (AC)
