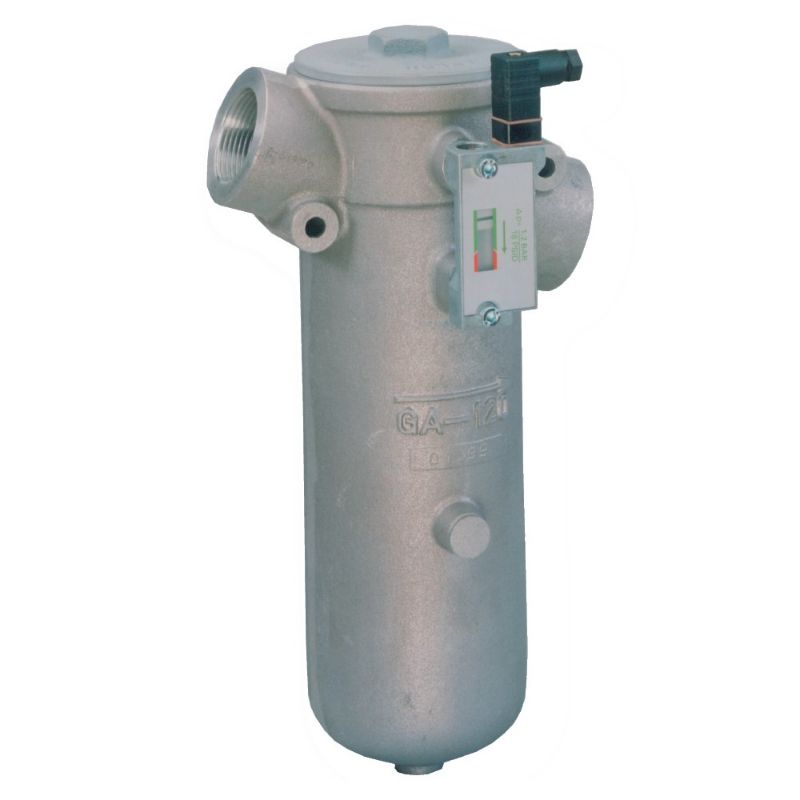

Parker 2.038023076E9 - Low Pressure In-Line Filter - GA Series

The In-line GA series low pressure filters feature magnetic pre-filtration and a wide range of filter media. A light weight aluminium housing design, with maximum flow rate of 320 l/min and a maximum pressure of 30 bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2.038023076E9

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Type	Inline	Division	Hydraulic & Industrial Process Filtration Division EMEA
Operating Temperature	-40 to 100	Housing Material	Aluminium
Pressure Rating	30	Seal Material	Nitrile
Micron Rating	10 µm	Connection Type	G1½
Options	With magnets	Flow Rate	0 to 280 l/min
Indicator Type	Vis/Electr. reverse on right side, left side plugged	Filter Element Type	10C Cellulose
Indicator Pressure Setting	0.7 bar	Bypass Valve Pressure Rating	0.8 bar
For Use With	GA 2-230

Product resources

Literature and Reference Materials

GA Series Brochure (PDF)
