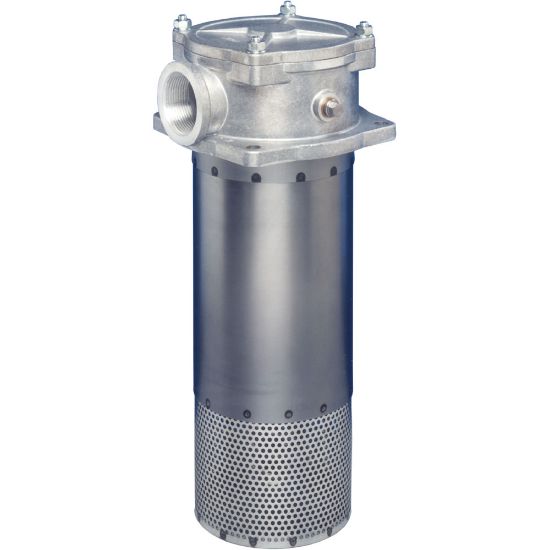

Parker 2032012088 - Tanktop Mounted Return Line Filter - TTF Series

The TTF Series features pre-filtration by means of a magnet column and a quick response bypass with low hysteresis. Maximum pressure 10 bar. Maximum flow 500 l/min. A second return port is an available option as is a filling port in the filter cover.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2032012088

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hydraulic & Industrial Process Filtration Division EMEA	Product Series	TTF Series
Seal Material	Nitrile	Micron Rating	10 µm
Filter Element Type	10QL Ecoglass	Flow Rate	0 to 140 l/min
Bypass Valve Pressure Rating	1.5 bar	Options	Diffuser type P
Indicator Type	Electrical 48V, NO, M10x1 JT connector	Connection Type	G1

Product resources

Literature and Reference Materials
