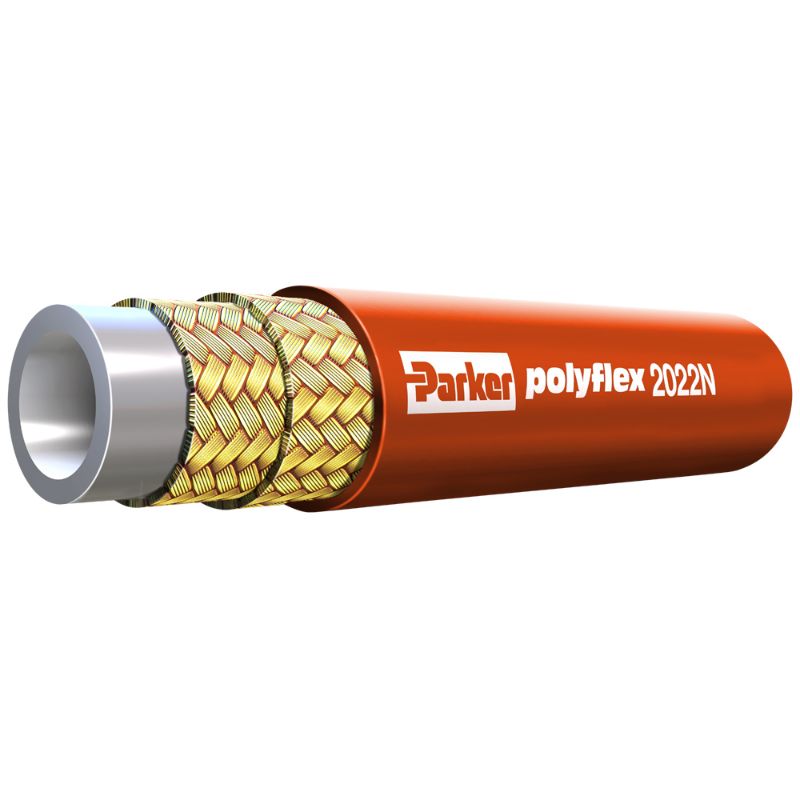

Parker 2022N-04V15 - High Pressure Hydraulic Hose - 2022N

Parker 2022N is a 10,000 psi constant pressure hose from Polyflex designed for hydraulic or oil and gas applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2022N-04V15

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Minimum Operating Temperature	-40 °C
Division	Parflex Division	Maximum Operating Temperature	176 °F
Size	-4	Inside Diameter	1/4 inch
Design Factor	4:1	Minimum Bend Radius	4 inch
Cover Material	Polyurethane	Hose Inner Tube Material	Polyamide (PA)
Application	Hydraulics	Weight	0.14 kg/m
Safety Features	Bend Restrictors Required for Hand Held Applications.	Outside Diameter	13.8 mm
Compatible Fitting	8X Series Hose guards (HG2022N-4) are required for all hand held applications. Parker Parflex suggests the use of bend restrictors for all assemblies.	Specifications Met	ISO 13628-5, Section 7.9
Maximum Operating Pressure	690 bar	Hose Reinforcement Material	Braid of Aramid Fiber
Hose I.D. (inch)	1/4	Cover Material	Polyurethane - orange
