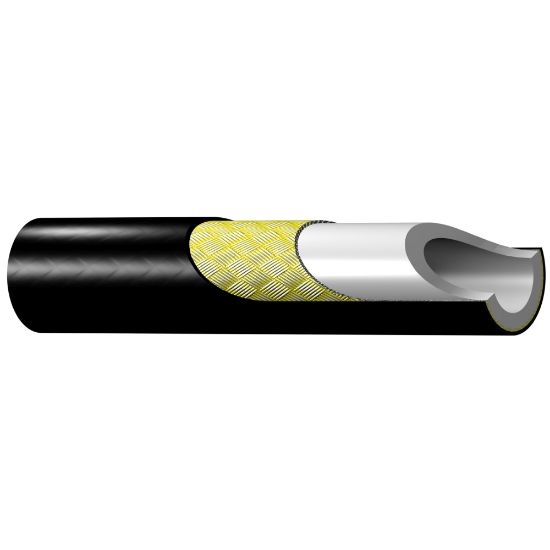

Parker 2020N-02V30 - Small Bore High Pressure Mini Hydraulic Hose – 2020N

Parker high pressure mini hydraulic hoses feature a compact hose O.D. for use in mini-hydraulic applications under 7,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2020N-02V30

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Division	Parflex Division
Design Factor	4:1	Maximum Operating Temperature	212 °F
Specifications Met	N/A	Cover Material	Polyurethane
Application	Hydraulic Systems	Maximum Operating Pressure	5800 psi
Media	Petroleum Hydraulic Fluids	Weight	0.02 kg/m
Inside Diameter	3.2 mm	Outside Diameter	0.240 inch
Compatible Fitting	RX Series	Minimum Bend Radius	30 mm
Hose Inner Tube Material	Conductive	Hose Reinforcement Material	1 Braid of High Tensile Synthetic Fiber
Size	-2	Hose I.D. (size)	-2
