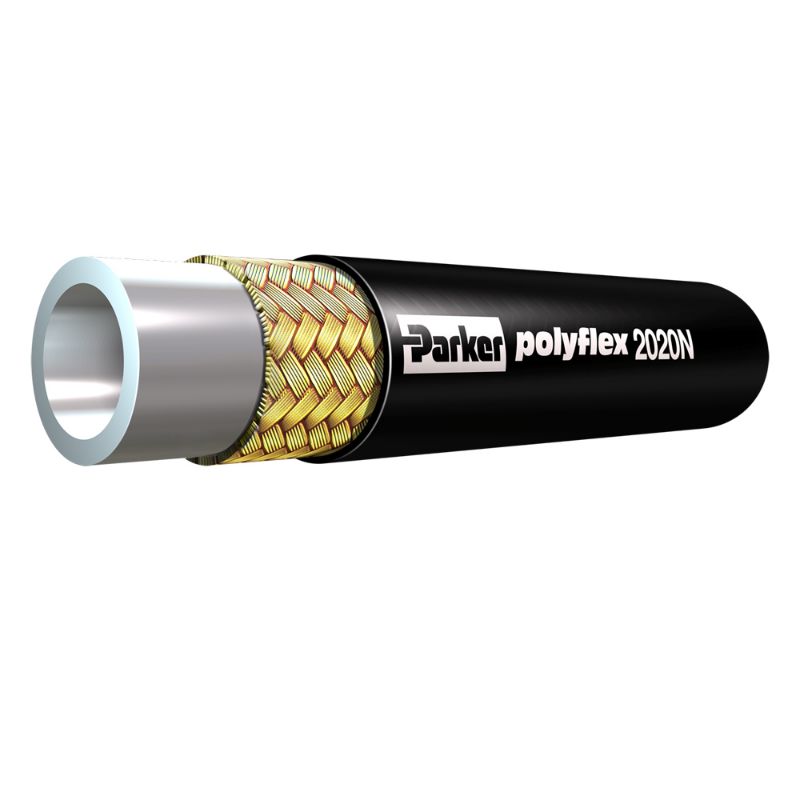

Parker 2020N-012R30 - Small Bore High Pressure Mini Hydraulic Hose – 2020N

Parker high pressure mini hydraulic hoses feature a compact hose O.D. for use in mini-hydraulic applications under 7,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2020N-012R30

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Minimum Operating Temperature	-40
Division	Parflex Division	Specifications Met	N/A
Cover Material	Polyurethane	Hose Inner Tube Material	Polyamide (PA)
Maximum Operating Temperature	180	Application	Oil & Gas
Maximum Operating Pressure	6890	Weight	0.01
Inside Diameter	5/64	Outside Diameter	0.200
Compatible Fitting	EX Series	Minimum Bend Radius	0.790
Hose Reinforcement Material	1 Braid of High Tensile Synthetic Fiber	Size	-012
Design Factor	2.5:1	Hose I.D. (size)	-012
