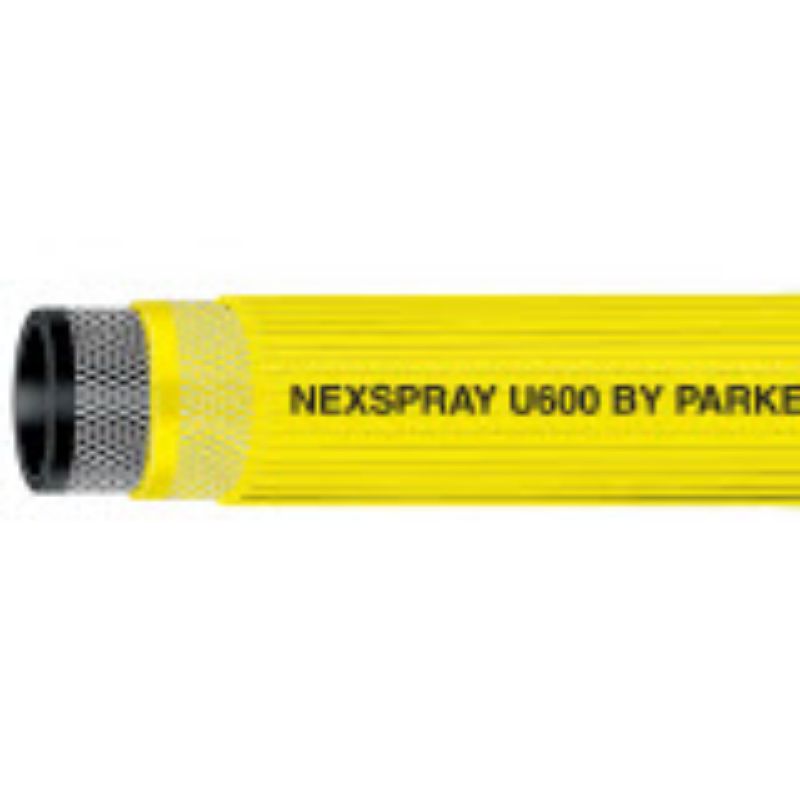

Parker 202-12002300 - NEXSPRAY™ PVC/Urethane Spray Hose, Series 202

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 202-12002300

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Media	Chemicals
Specifications Met	N/A	Weight	0.33
Package Type	Coil	Maximum Operating Temperature	150
Minimum Operating Temperature	25	Cover Color	Yellow
Inside Diameter	3/4	Application	PVC Hose
Cover Material	PVC	Minimum Bend Radius	n/a
Compatible Fitting	n/a	Hose Inner Tube Material	Black
Maximum Operating Pressure	600	Cover Structure	Longitudinal Ribs
Outside Diameter	1.140	Hose Reinforcement Material	4 Plies of Textile
Hose I.D. (inch)	3/4	Standard Pack Qty (ft)	300
Maximum Working Pressure (psi)	600

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
