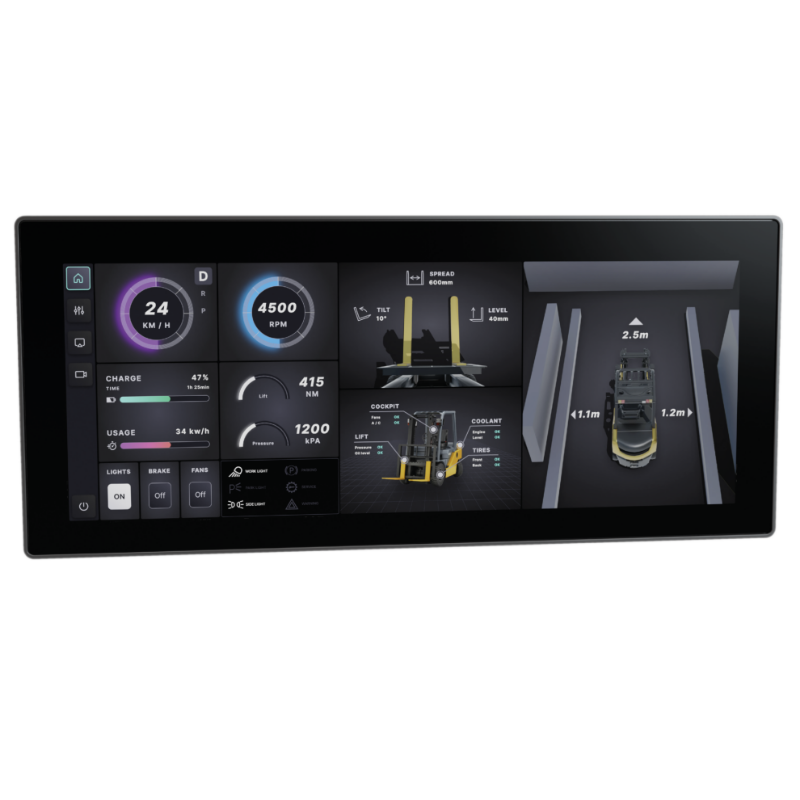

Parker 20085204 - Display module - IQAN-MD5

Parker's IQAN-MD5 display controller is a family of display units fully compliant with the IQANdesign platform system. The IQAN-MD5 is fully programmable for use in any machine application.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20085204

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Number of Outputs	2
Maximum Operating Temperature	70 °C	Power Supply Voltage	9 to 32 VDC
Ingress Protection Rating	IP65	Minimum Operating Temperature	-30 °C
Electrical Connection	Molex MX123 , 56 pos	Display Type	Touch interface: PCAP, 12,3" (32 cm) Color 21:8 1920x720 px.
Number of Inputs	8	Specifications Met	E-mark R10
Communication Interface	3x CAN (2.0B/FD)	Part Type	Master Display Module 12" (available 09/2024 - please consult us)
