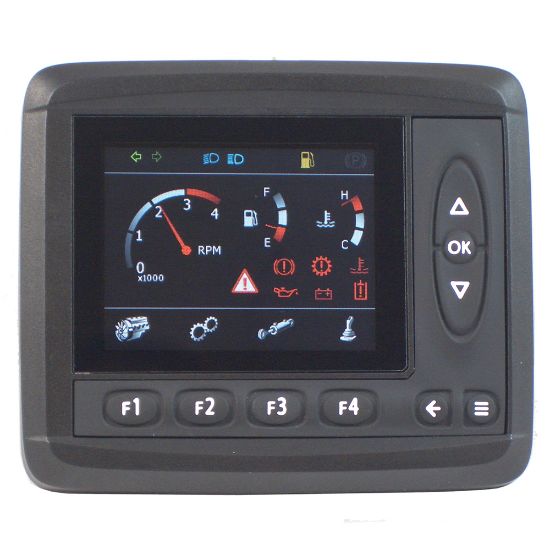

Parker 20077793 - Master Display module - IQAN-MD3

Parker's IQAN-MD3 is a master display unit that works with the expansion modules in IQAN control systems. The IQAN-MD3 is an obsolete product and a new version is available. Please see Master Display Module - IQAN-MD4 for the updated version.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20077793

Products specifications

Attribute name	Attribute value
Specifications Met	2004/108/EC	Number of Inputs	7
Display Type	3.5" Color TFT	Division	Electronic Motion and Controls Division
Power Supply Voltage	9 to 32 VDC	Number of Outputs	1
Maximum Operating Temperature	60 °C	Ingress Protection Rating	69K
Communication Interface	USB	Electrical Connection	Deutsch DTM
Minimum Operating Temperature	-30 °C	Model Number	IQAN-MD3-M15
