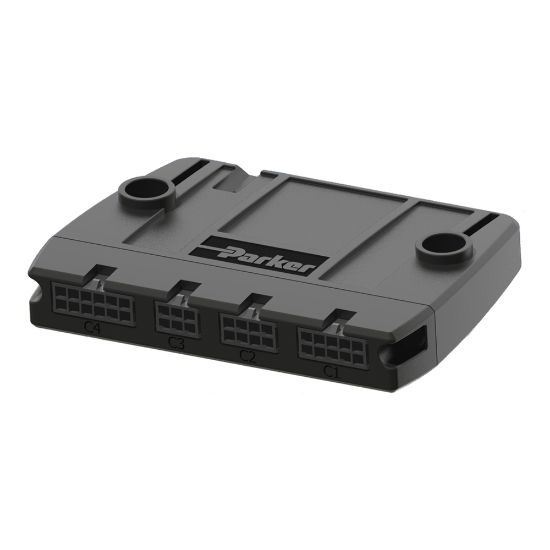

Parker 20077775 - Expansion controllers - IQAN-XC21/XC22/XC23

Parker's IQAN-XC21/XC22/XC23 expansion modules can be added to an IQAN system to increase I/O. They have voltage, digital, PWM and frequency inputs. The outputs are digital. The modules communicate with an IQAN master module over a CAN bus connection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20077775

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	70 °C	Ingress Protection Rating	40
Number of Outputs	8	Industry	Agriculture
Minimum Operating Temperature	-30 °C	Housing Material	Plastic
Power Supply Voltage	9 to 32 VDC	Controller Type	Slave/Expansion Module
Specifications Met	2004/108/EC	Division	Electronic Motion and Controls Division
Output Current Rating	300 mA	Electrical Connection	Molex Micro-Fit 3.0
Number of Inputs	20	Model Number	IQAN-XC21
