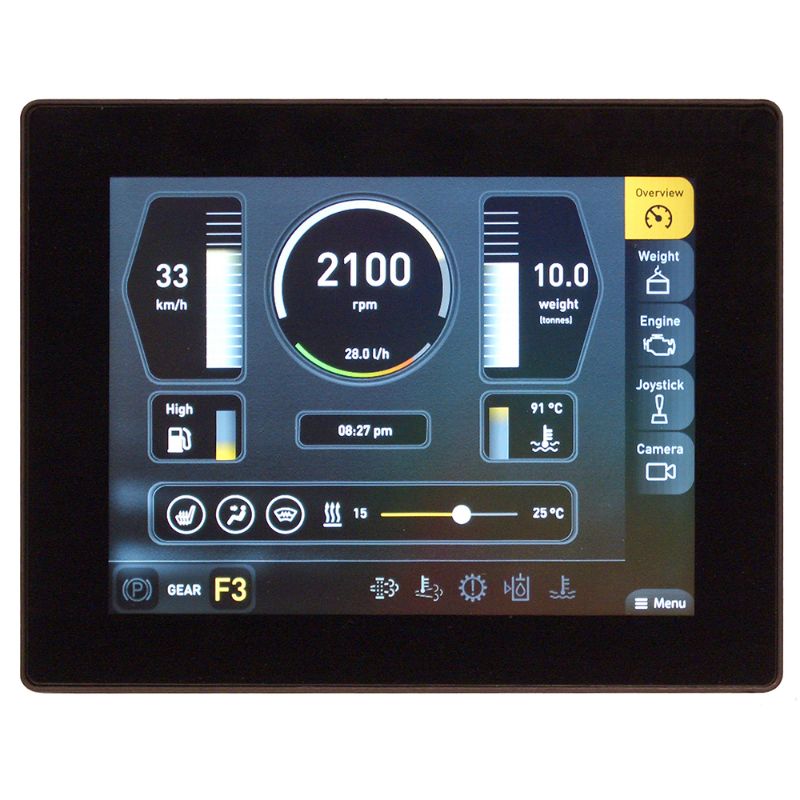

Parker 20077774 - Master Display module - IQAN-MD4

Note: This product is not recommended for new designs.
AFP Availability:
Partner Available:Quote Required
Brand Parker
Part No. 20077774
$4,431.60/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
'The IQAN-MD4-10-T1E2 is a master display unit compliant with the IQANdesign platform system. The unit is fully programmable for use in any machine application as a master controller, a graphical user interface and as a CAN gateway.
The IQAN-MD4 lets you use the full benefits from IQANdesign tools and simplifies the HMI design.The simplified design process, with auto-generated diagnostic measurements and adjustments, saves valuable time. IQAN gives you a high level tool chain for machine control and HMI development.
IQAN-MD4-10-T1E2 comes with a 26 cm (10.1") touch screen display with IP camera support, and is manufactured to be weatherproof for outdoor use.
Products specifications
Attribute nameAttribute value
UOMEANumber of Outputs4
Maximum Operating Temperature60 °CPower Supply Voltage9 to 32 VDC
Display Type10.4" Color TFT with PCAP TouchscreenCommunication Interface2x Ethernet
Ingress Protection Rating65Electrical ConnectionDeutsch DTM
Minimum Operating Temperature-30 °CSpecifications Met2004/108/EC
Number of Inputs10DivisionElectronic Motion and Controls Division
Model NumberMD4-10-T1E2
