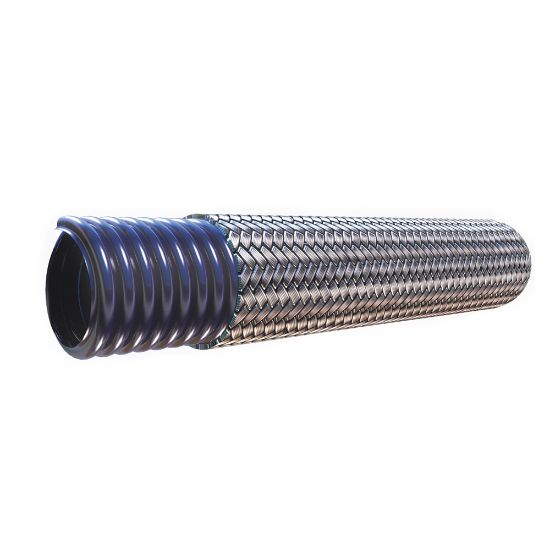

Picture of Parker 20-SCB - Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 20-SCB - Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB

Parker SCW and SCB hoses are seamless, low profile, environmentally safe, self-draining and able to withstand extreme flexing. They are suitable for fluid handling, chemical transfer, paint and semiconductor applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 20-SCB
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionParflex DivisionMaximum Operating Temperature500 °F
Weight0.68 kg/mInside Diameter32 mm
Maximum Operating Pressure750 psiDesign Factor4:1
Minimum Operating Temperature-73 °CApplicationSemiconductor
Hose Reinforcement MaterialBraid of 304 Stainless SteelCover Materialn/a
Compatible FittingPAGE SeriesMediaIndustrial Fluids
Vacuum Pressure Rating711.2 mm-HgMinimum Bend Radius3 inch
Specifications MetUSP Class VI (compliant core tube)Outside Diameter1.750 inch
Size-20Hose Inner Tube MaterialPolytetrafluoroethylene (PTFE) Static Dissipative
Hose StyleStatic DissipativeHose I.D. (inch)1-1/4
