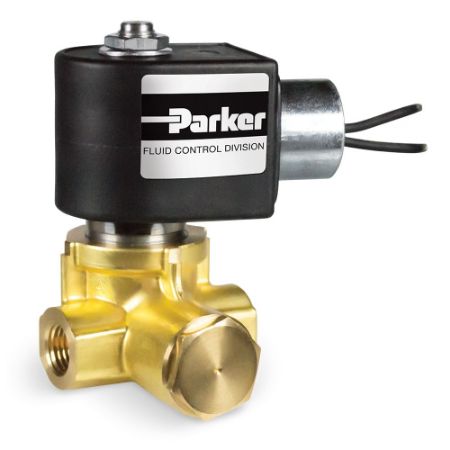

Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's 2-Way Normally Open 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.

Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation

Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff

Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Port Type	Port Size	Body Material	Division	Media	Function	Coil Type	Valve Type	Input Voltage	Seal Material	Actuation Type	Orifice 1 Size	Orifice 2 Size	Product Series	Number of Ports	Power Consumption	Flow Coefficient 1	Flow Coefficient 2	Coil Specifications Met	Maximum Fluid Temperature	Minimum Fluid Temperature	Maximum Pressure Differential	Minimum Pressure Differential	Coil Type	Voltage (V)	Power (Watts)	Seal Material	Flow Factor 1 (Cv)	Orifice 1 Size (inch)	Maximum Pressure Differential (psi)
04F20O2118ACF4C15	Quote Required	Quote Required	TBD		NPT	1/4	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	220/50 to 240/60	NBR	Direct Acting	9/32	n/a	Gold Ring Series	2	11 W (AC)	0.96	n/a	Class F	180	0	30 psi (AC)	0	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	220/50-240/60	11 Watt (AC)	NBR	0.96	9/32	30 psi (AC)
04F20O2118ACFPH01	Quote Required	Quote Required	TBD		NPT	1/4	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	DIN Form A, Class F	2-Way	24/60	NBR	Direct Acting	9/32	n/a	Gold Ring Series	2	11 W (AC)	0.96	n/a	Class F	180	0	30 psi (AC)	0	DIN Form A, Class F	24/60	11 Watt (AC)	NBR	0.96	9/32	30 psi (AC)
04F20O2118ACFPH05	Quote Required	Quote Required	$207.17	EA	NPT	1/4 inch	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	DIN Form A, Class F	2-Way	110/50-120/60	NBR	Direct Acting	9/32 inch	n/a	Gold Ring Series	2	11 W (AC)	0.96 Cv	n/a	Class F	180 °F	0 °F	30 psi (AC)	0 psi	DIN Form A, Class F	110/50-120/60	11 Watt (AC)	NBR	0.96	9/32	30 psi (AC)
04F20O2118ACFPH15	Quote Required	Quote Required	TBD		NPT	1/4 inch	Brass	Fluid Control Division	Liquids and Gases	Normally Open (NO)	DIN Form A, Class F	2-Way	220/50 to 240/60	NBR	Direct Acting	9/32 inch	n/a	Gold Ring Series	2	11 W (AC)	0.96 Cv	n/a	Class F	180 °F	0 °F	30 psi (AC)	0 psi	DIN Form A, Class F	220/50-240/60	11 Watt (AC)	NBR	0.96	9/32	30 psi (AC)
7122KBN2LF00N0C111C1	Quote Required	Quote Required	TBD		NPT	1/4 inch	Brass	Fluid Control Division	Liquids and Gases	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	12.0 VDC	PCTFE	Direct Acting	3/32 inch	n/a	7000 Series	2	10 W (DC)	0.21 Cv	n/a	NEMA 4X	165 °F	0 °F	175 psi (DC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	12 VDC	10 Watt (DC)	PCTFE	0.21	3/32	175 psi (DC)
7122KBN2LF00N0C111C2	Quote Required	Quote Required	TBD		NPT	1/4 inch	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	24.0 VDC	PCTFE	Direct Acting	3/32 inch	n/a	7000 Series	2	10 W (DC)	0.21 Cv	n/a	NEMA 4X	165 °F	0 °F	175 psi (DC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	24 VDC	10 Watt (DC)	PCTFE	0.21	3/32	175 psi (DC)
7122KBN2LF00N0C111P3	Quote Required	Quote Required	$0.01	EA	NPT	1/4 inch	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	110/50-120/60	PCTFE	Direct Acting	3/32 inch	n/a	7000 Series	2	10 W (AC)	0.21 Cv	n/a	NEMA 4X	165 °F	0 °F	175 psi (AC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	110/50-120/60	10 Watt (AC)	PCTFE	0.21	3/32	175 psi (AC)
7122KBN2LF00N0C222C1	Quote Required	Quote Required	TBD		NPT	1/4 inch	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	2-Way	12.0 VDC	PCTFE	Direct Acting	3/32 inch	n/a	7000 Series	2	10 W (DC)	0.21 Cv	n/a	NEMA 4X	165 °F	0 °F	175 psi (DC)	0 psi	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	12 VDC	10 Watt (DC)	PCTFE	0.21	3/32	175 psi (DC)
7122KBN2LF00N0C222C2	Quote Required	Quote Required	TBD		NPT	1/4 inch	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	2-Way	24.0 VDC	PCTFE	Direct Acting	3/32 inch	n/a	7000 Series	2	10 W (DC)	0.21 Cv	n/a	NEMA 4X	165 °F	0 °F	175 psi (DC)	0 psi	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	24 VDC	10 Watt (DC)	PCTFE	0.21	3/32	175 psi (DC)
7122KBN2LF00N0D100C2	Quote Required	Quote Required	$177.89	EA	NPT	1/4 inch	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	DIN Form A, Class F	2-Way	24.0 VDC	PCTFE	Direct Acting	3/32 inch	n/a	7000 Series	2	10 W (DC)	0.21 Cv	n/a	Class F	165 °F	0 °F	175 psi (DC)	0 psi	DIN Form A, Class F	24 VDC	10 Watt (DC)	PCTFE	0.21	3/32	175 psi (DC)
7122KBN2LF00N0H111C2	Quote Required	Quote Required	$0.01	EA	NPT	1/4	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	2-Way	24.0	PCTFE	Direct Acting	3/32	n/a	7000 Series	2	10 W (DC)	0.21	n/a	NEMA 9	165	0	175 psi (DC)	0	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	24 VDC	10 Watt (DC)	PCTFE	0.21	3/32	175 psi (DC)
7122KBN2LF00N0H111P3	Quote Required	Quote Required	TBD		NPT	1/4	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	2-Way	110/50-120/60	PCTFE	Direct Acting	3/32	n/a	7000 Series	2	10 W (AC)	0.21	n/a	NEMA 9	165	0	175 psi (AC)	0	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	110/50-120/60	10 Watt (AC)	PCTFE	0.21	3/32	175 psi (AC)
73222BN2MN00N0C111C1	Quote Required	Quote Required	TBD		NPT	1/4 inch	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	12.0 VDC	NBR	Manual	7/16 inch	n/a	7000 Series	2	10 W (DC)	0.76 Cv	n/a	NEMA 4X	185 °F	0 °F	200 psi (DC)	5 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	12 VDC	10 Watt (DC)	NBR	0.76	7/16	200 psi (DC)
73222BN2MN00N0C111C2	Quote Required	Quote Required	TBD		NPT	1/4 inch	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	24.0 VDC	NBR	Mechanical	7/16 inch	n/a	7000 Series	2	10 W (DC)	0.76 Cv	n/a	NEMA 4X	185 °F	0 °F	200 psi (DC)	5 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	24 VDC	10 Watt (DC)	NBR	0.76	7/16	200 psi (DC)
73222BN2MN00N0C111P3	Quote Required	Quote Required	TBD		NPT	1/4	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	110/50-120/60	NBR	Manual	7/16	n/a	7000 Series	2	10 W (AC)	0.76	n/a	NEMA 4X	185	0	200 psi (AC)	5	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	110/50-120/60	10 Watt (AC)	NBR	0.76	7/16	200 psi (AC)
73222BN2MN00N0C111Q3	Quote Required	Quote Required	TBD		NPT	1/4	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	220/50 to 240/60	NBR	Manual	7/16	n/a	7000 Series	2	10 W (AC)	0.76	n/a	NEMA 4X	185	0	200 psi (AC)	5	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	220/50-240/60	10 Watt (AC)	NBR	0.76	7/16	200 psi (AC)
73222BN2MN00N0C222C1	Quote Required	Quote Required	TBD		NPT	1/4	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	2-Way	12.0	NBR	Manual	7/16	n/a	7000 Series	2	10 W (DC)	0.76	n/a	NEMA 4X	185	0	200 psi (DC)	5	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	12 VDC	10 Watt (DC)	NBR	0.76	7/16	200 psi (DC)
73222BN2MN00N0C222C2	Quote Required	Quote Required	TBD		NPT	1/4	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	2-Way	24.0	NBR	Manual	7/16	n/a	7000 Series	2	10 W (DC)	0.76	n/a	NEMA 4X	185	0	200 psi (DC)	5	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	24 VDC	10 Watt (DC)	NBR	0.76	7/16	200 psi (DC)
73222BN2MN00N0C222P3	Quote Required	Quote Required	TBD		NPT	1/4	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	2-Way	110/50-120/60	NBR	Manual	7/16	n/a	7000 Series	2	10 W (AC)	0.76	n/a	NEMA 4X	185	0	200 psi (AC)	5	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	110/50-120/60	10 Watt (AC)	NBR	0.76	7/16	200 psi (AC)
73222BN2MN00N0C222Q3	Quote Required	Quote Required	TBD		NPT	1/4	Brass	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	2-Way	220/50 to 240/60	NBR	Manual	7/16	n/a	7000 Series	2	10 W (AC)	0.76	n/a	NEMA 4X	185	0	200 psi (AC)	5	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	220/50-240/60	10 Watt (AC)	NBR	0.76	7/16	200 psi (AC)
